YTF032 (Y05N)

Applicable to front-mounted/large and medium-sized highway vehicles, meeting different market demands such as passenger transportation, tourism, and group travel.

  • Two-point seat belt configuration: 950mm/Three-point seat belt configuration: 965mm

    Seat width (min)

  • 695(-10,10)mm

    Seat depth

  • Standard configuration: 30(0,+5) mm/Optional configuration: 60(0,+5) mm

    Backrest thickness (min)

  • 450(-5,5)mm

    Seat cushion width

Technical Parameters

Product parameter information
Backrest height 770(-10,10)m
Backrest width 450(-5,5)mm
Seat cushion depth 470(-5,5)mm
Seat cushion width 450(-5,5)mm
Backrest thickness

Standard configuration: 30 (0, +5) mm

Optional: 60 (0, +5) mm

Initial angle of backrest 106°

Seat cushion height (Asian version)

Seat cushion height (African version)

433(-10,5)mm

463(-10,5)mm

Seat cushion height (African version) 460(-10,5)mm
Seat cushion height (Middle East version) 433(-10,5)mm
Backrest adjustment angle 15°-20°
Lateral adjustment amount 60mm
Seat width (min)

Two-point seat belt configuration: 950mm

Three-point seat belt configuration: 965mm

Seat depth 695(-10,10)mm
Product function configuration information
Backrest adjustment Standard configuration
Lateral adjustment Standard configuration
Side handrail Standard configuration
Handle Standard configuration
Seat pocket Standard configuration
Tray table Optional
Cup holder Optional
USB Optional
Pedal Optional
Seat belt alarm Optional
3-point seat belt Optional
2-point retracting seat belt Optional
2-point common seat belt Optional
Folding/lifting headrest Optional
Pillow towel Optional
Unfold

Features

Safety

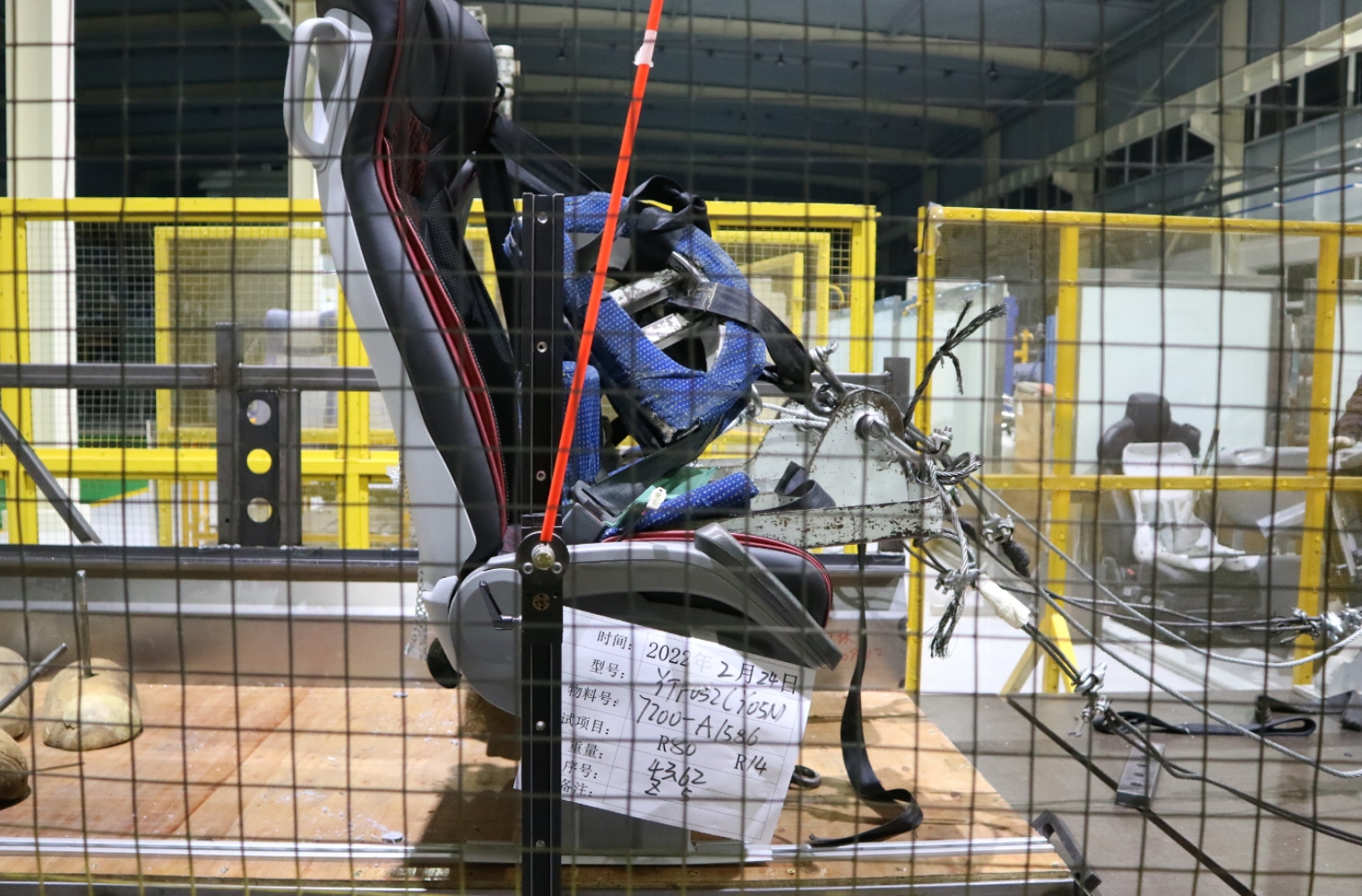

It has obtained the EU E-Mark certification and has passed the domestically conducted dynamic collision test, meeting the corresponding requirements.

Aesthetics

The product is designed with an integrated backboard, which integrates handle, seat pocket, tray table, USB and other equipment to provide an overall high-end and stylish appearance.

Comfort

Ergonomically checked curve design, balanced body pressure distribution, and dual-density sponge design for cushion, headrest and other areas can bring you a comfortable experience regardless of long distance or short distance.

Reliability

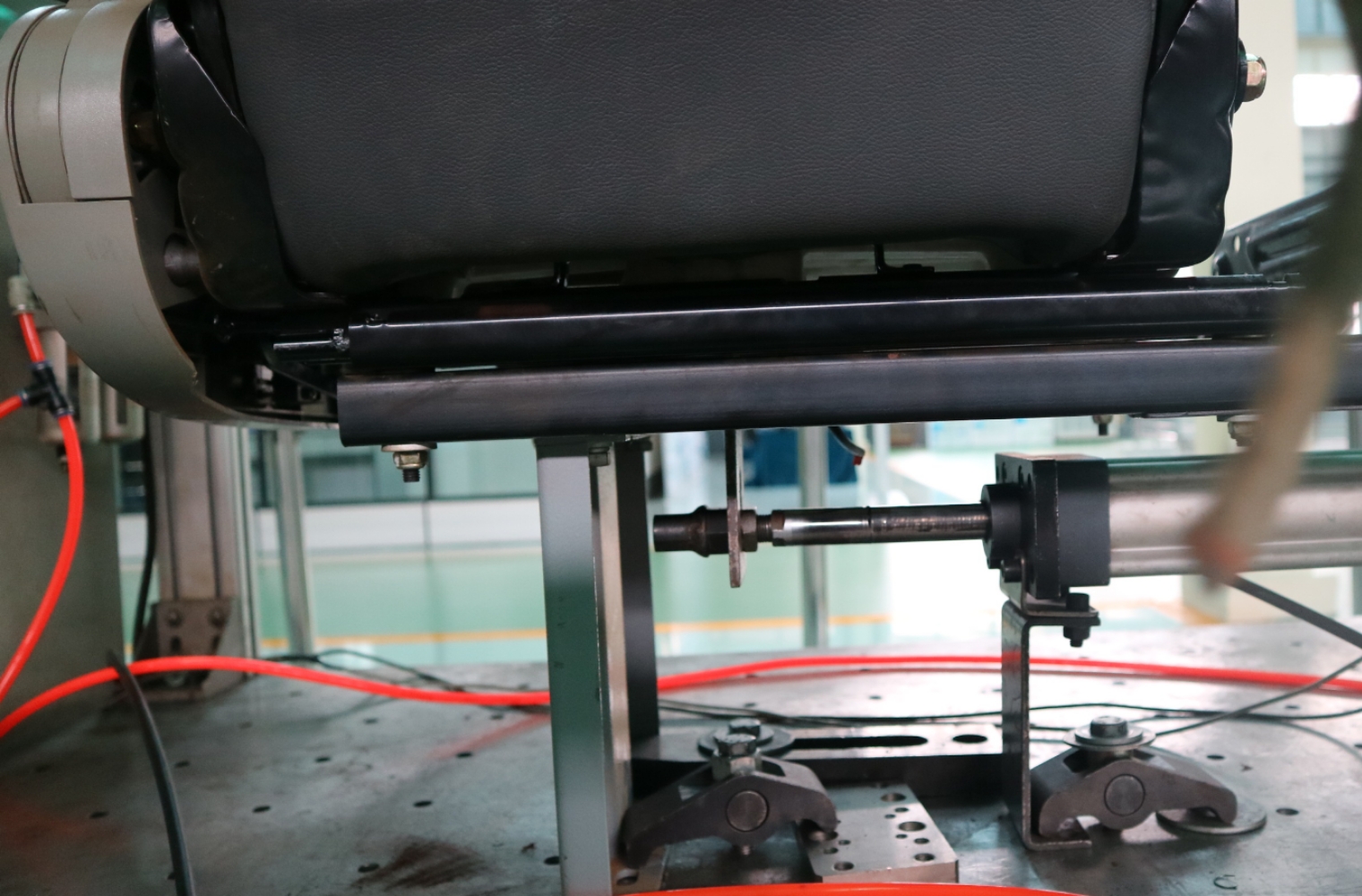

Each component is subject to rigorous reliability testing before mass production, ensuring that the product meets passenger requirements throughout its service life and reduces daily maintenance costs.
