YTF032 (F05) H-ZHENGZHOU JINGYIDA AUTO PARTS CO.,LTD

YTF032 (F05) H

The product is suitable for front-mounted/large and medium-sized highway vehicles such as long-distance coaches, tourism coaches, and commuter vehicles, catering to a range of market demands.

Two-point seat belt configuration: 950mm/Three-point seat belt configuration: 955mm

Seat width (min)
695(-10,10)mm

Seat depth
Standard configuration: 30(0,+5) mm/Optional configuration: 60(0,+5) mm

Backrest thickness (min)
450 (-5,5)mm

Seat cushion width

Get a quote WhatsApp

Technical Parameters

Product parameter information
Backrest height	750(-10,10)mm
Backrest width	440(-5,5)mm
Seat cushion depth	470(-5,5)mm
Seat cushion width	450(-5,5)mm
Backrest thickness	Standard configuration: 30 (0,+5) mm Optional configuration: 60 (0,+5) mm
Initial angle of backrest	106°
Seat cushion height (Asian version) Seat cushion height (African version)	433(-10,5)mm 463(-10,5)mm
Backrest adjustment angle	15°-20°
Lateral adjustment amount	60mm
Seat width (min)	Two-point seat belt configuration: 950mm Three-point seat belt configuration: 965mm
Seat depth	695(-10,10)mm
Product function configuration information
Backrest adjustment	Standard configuration
Lateral adjustment	Standard configuration
Side armrest	Standard configuration
Pull handle	Standard configuration
Seat pocket	Standard configuration
Table	Optional configuration
Cup holder	Optional configuration
USB	Optional configuration
Pedal	Optional configuration
Seat belt alarm	Optional configuration
Three-point seat belt	Optional configuration
Two-point retracting seat belt	Optional configuration
Two-point common seat belt	Optional configuration
Pillow towel	Optional configuration

Unfold

Features

Safety

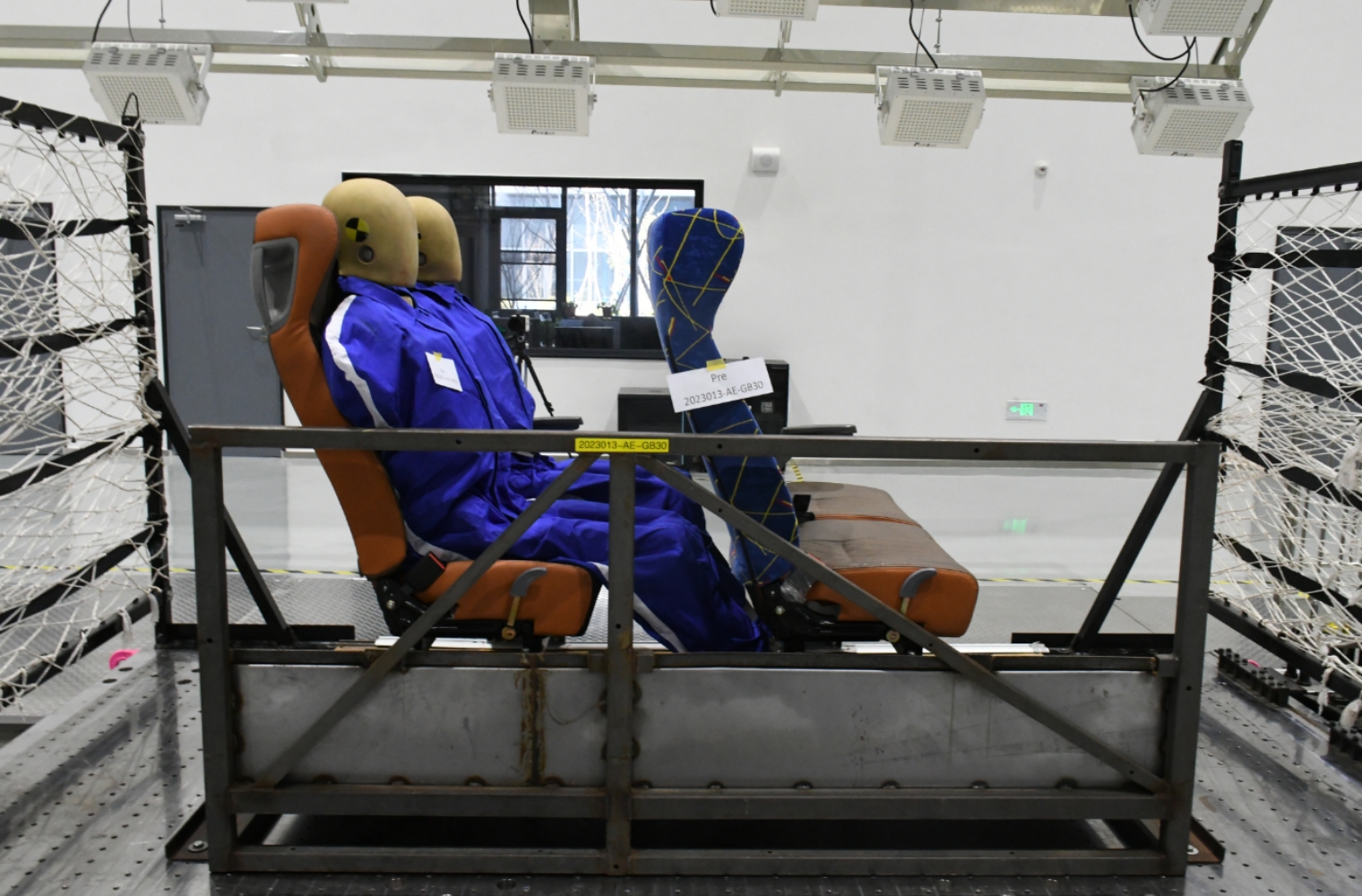

We obtained the 3C certification in China, participated in the formulation of national bus seat standards, and designated the test seat at the national standard publicity meeting. It was the first seat in China to conduct dynamic crash test of restrained dummy.

Comfort

The ergonomically checked curve design, balanced body pressure distribution and unique head design combined with high-elastic foam can bring you a comfortable experience regardless of long distance or short distance.

Reliability

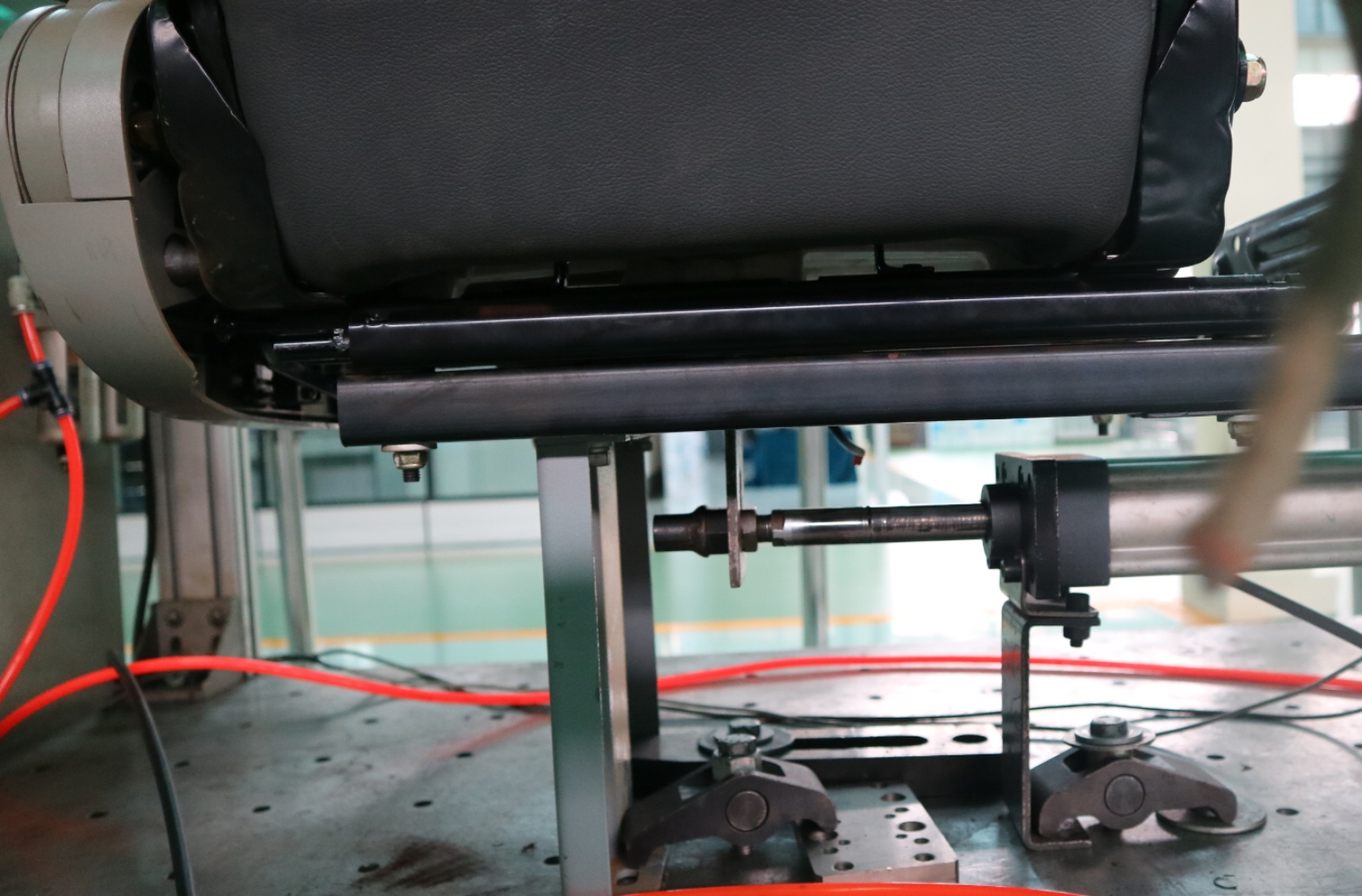

Each component is subject to rigorous reliability test before mass production, so as to ensure that the product can meet the needs of passengers during its service life cycle and reduce daily maintenance costs.

photos
