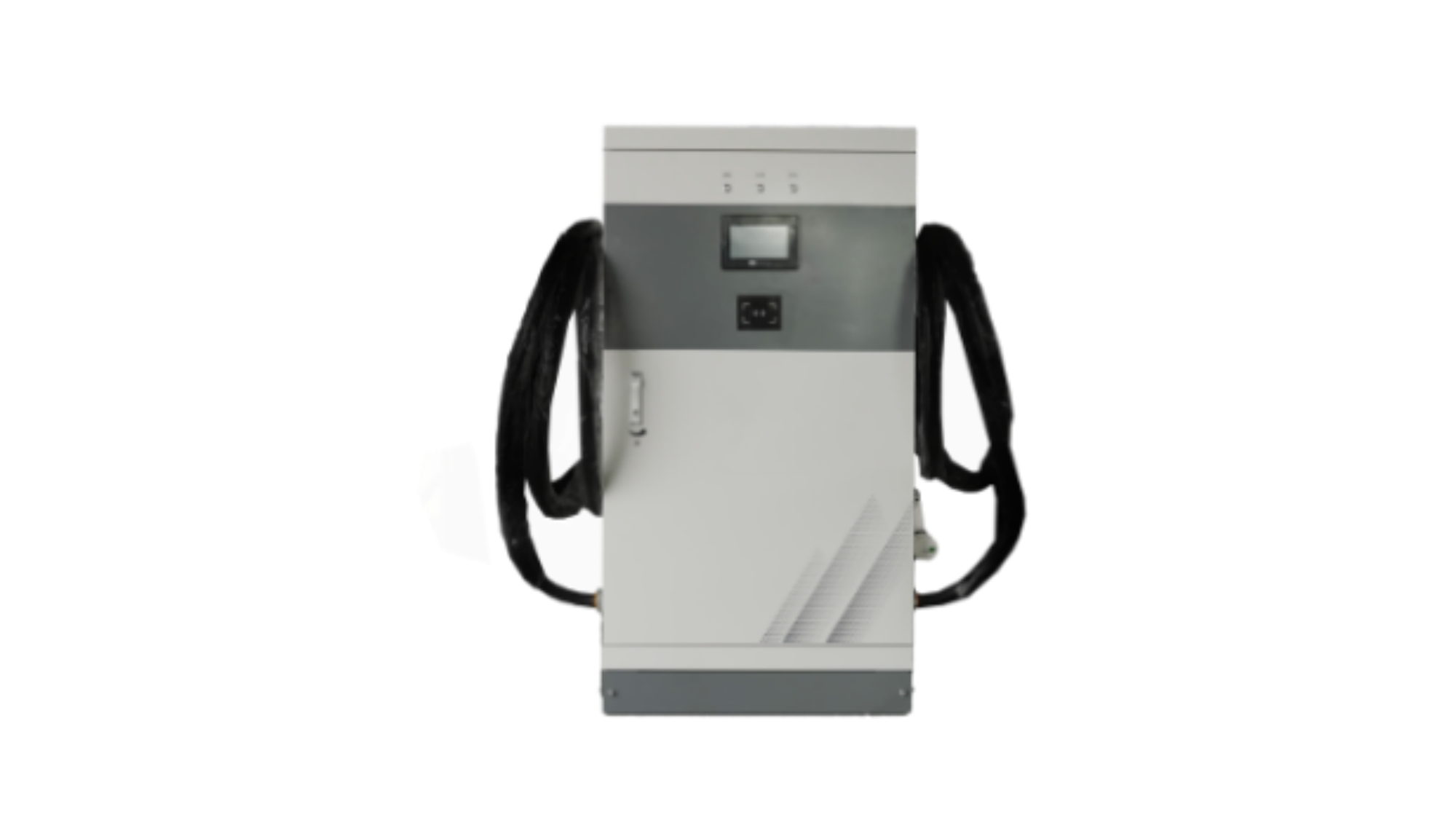

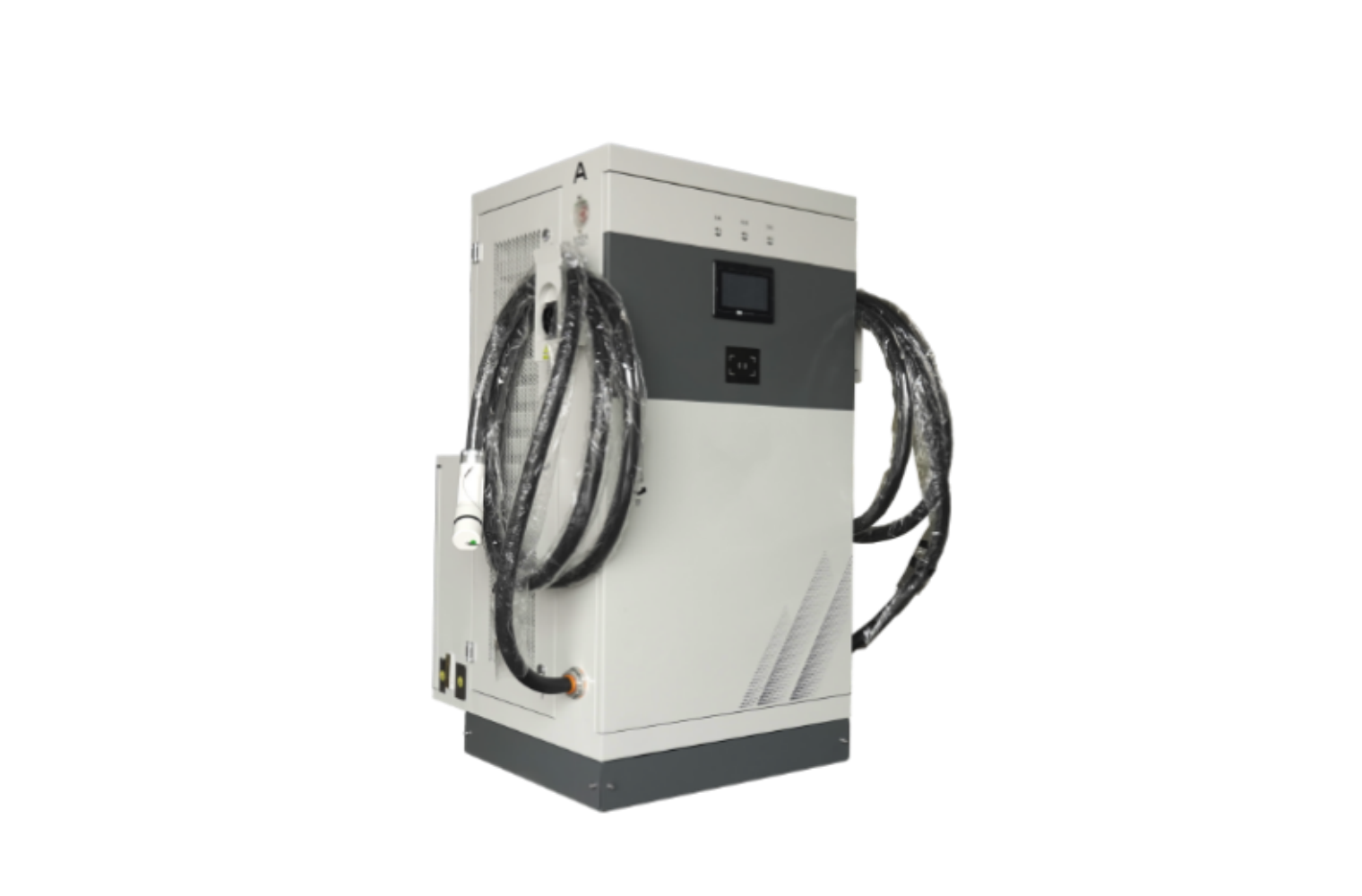

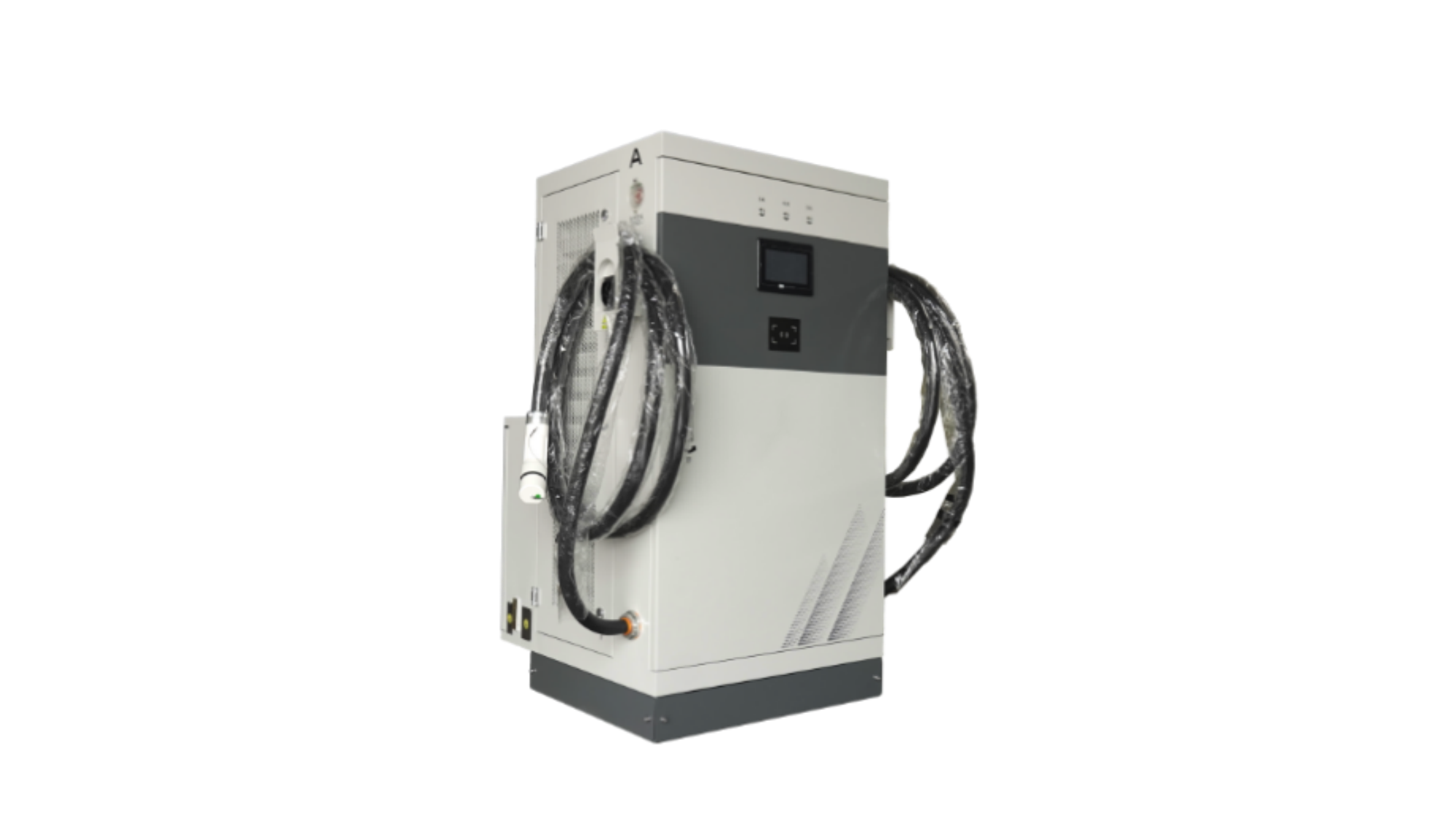

240/320kW Integrated DC Charger - Enhanced Version

This product is mainly suitable for charging construction machinery and heavy trucks in mines, ports and logistics.

380 V/480 V+15%

Input Voltage (V)
50Hz+10%

AC Grid Frequency (Hz)
240kW, 320kW

Maximum Output Power (kW)
100-1000 V

Output Voltage (V)

Get a quote WhatsApp

Technical Parameters

	Product Model	SZ-240G2.5	SZ-320G2.5
Mechanical Features	Number of Charging Plugs	Dual Plug	Dual Plug
	Overall Dimensions	8509001600mm	8509001600mm
	Touch Screen	7-inch	7-inch
Basic Performance	Input Voltage	380V±15%	380V±15%
	Input Frequency	50Hz±10%	50Hz±10%
	Connection Mode	3-phase 5-wire	3-phase 5-wire
	Machine Power	240kW	320kW
	Output Voltage	100～1000V	100～1000V
	Maximum Output Current of Single Plug	250A	250A
	Maximum Output Current of Machine	500A	500A
	Power Factor	≥0.99(P≥50%)	≥0.99(P≥50%)
	Efficiency	≥95%(P≥50%)	≥95%(P≥50%)
	Communication Interface	4G/LAN	4G/LAN
	Cooling Mode	Air Cooling	Air Cooling
Operating Environment	Protection Grade	IP55	IP55
Operating Environment	Operating Temperature	-30℃～+55℃	-30℃～+55℃
Safety Protection	Protection Function	Cloud platform: Fault early warning and advanced disposal; Vehicle pile data intercommunication and two-way safety verification; Analysis of charging history data and big data protection.
		Complete machine: Protections on battery voltage, overcurrent, over-temperature, reverse connection, reverse charge protection, input overvoltage, under-voltage, overcurrent, short circuit to ground, emergency shutdown, insulation alarm and fault state early warning.
		Parts and components: Charging connector temperature protection, module overheating protection, electronic lock protection, lightning protection, leakage protection, door opening protection.
	Reference Standards	China's National Standards: GB/T 18487, GB/T 27930, GB/T 20234, GB/T 34657, GB/T 34658 and GB 4208-2017
		Energy Industry Standards: NB/T 33001 and NB/T 33008.1-2018
		Measurement Standard: JJG 1149

Unfold

Features

Faster Charging

The double-plug charging current of 240/320kW charger can reach 500A, which is 25% higher than China's national standard and industrial level of double-plug charging current (400A).

Higher Efficiency

The charger efficiency exceeds 95%, which reduces the operating cost.

Enhanced Safety

In addition to more than 40 safety protection measures such as input and output overvoltage and undervoltage protection, the charging system has also leakage protection and access control protection, far superior to China's national standard and industry safety requirements.

High Reliability

The charging plug has passed 12000 durability tests and its protection capability is up to IP67.

Strong Adaptability

The charger has an ultra-wide input voltage range, and abnormal power grid fluctuation does not affect the normal output of the charger.

Intelligent Interconnection

Intelligent and flexible. The charger has various payment methods such as card swiping and QR code scanning, and supports multiple charging modes such as dual-plug parallel charging, dual-pile simultaneous charging and VIN plug-and-charge; it is interconnected and can be connected to mainstream operation management platforms, Internet traffic platforms and government supervision platforms.
