Asia YT02 (F02N) Passenger Seat

The product is suitable for the middle and high-end tourism coach and passenger transport markets in Asia, and is generally assembled on coaches with rear-mounted engines.

2-point seat belt configuration: 980 mm; 3-point seat belt configuration: 980 mm

Seat width (mm)
700(-10,10)mm

Seat depth
Standard: 90 (-5, +5) mm; Optional: 130 (-5, +5) mm

Backrest thickness (mm)
450(-5,5)mm

Seat cushion width

Get a quote WhatsApp

Technical Parameters

Product parameters
Backrest height	740(-10,10)mm
Backrest width	450(-5,5)mm
Seat cushion depth	445(-5,5)mm
Seat cushion width	450(-5,5)mm
Backrest thickness	Standard: 100 (0, +5) mm Optional: 140 (0, +5) mm
Initial backrest angle	110°
Seat cushion height	440(-10,5)mm
Backrest adjustment angle	20°-30°
Lateral adjustment range	60mm
Seat width (mm)	2-point seat belt configuration: 980 mm 3-point seat belt configuration: 980 mm
Seat depth	700(-10,10)mm
Product function configurations
Backrest adjustment	Standard
Lateral adjustment	Standard
Fixed side handrail	Standard
Top handle	Standard
Seat pocket	Standard
Movable side handrail	Optional
Middle handrail	Optional
Forward leg rest	Optional
Tray table	Optional
Cup holder	Optional
USB	Optional
Pedal	Optional
TV	Optional
Seat belt alarm	Optional
3-point seat belt	Optional
2-point retracting seat belt	Optional
2-point common seat belt	Optional
Pillow towel	Optional

Unfold

Features

Safety

Obtain the domestic 3C certificate.

Comfort

The curve design verified based on ergonomics ensures a balanced distribution of body pressure, and the unique design for the head with high-resilience foam can bring you a comfortable experience no matter the distance.

Reliability

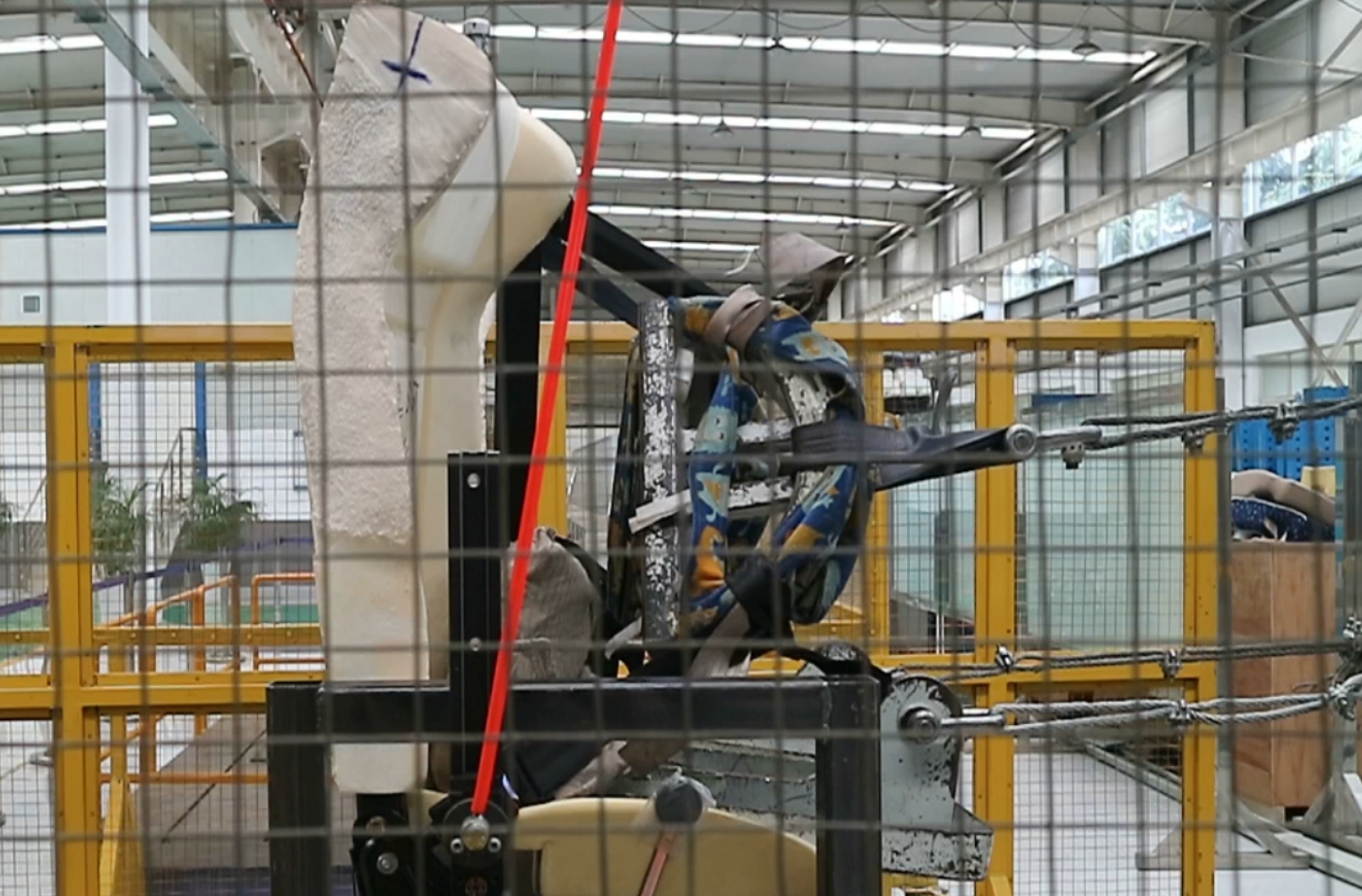

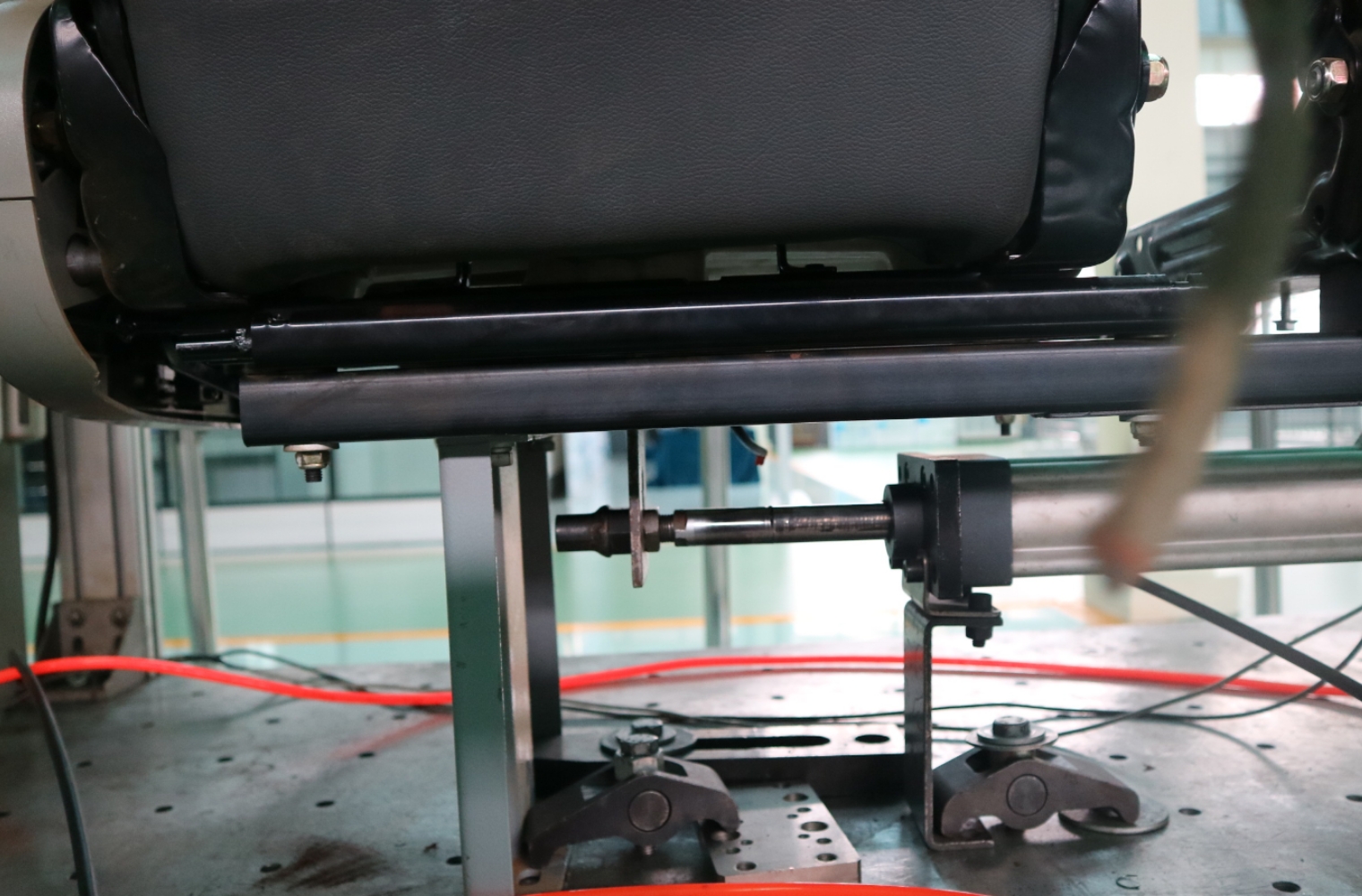

We strictly implement enterprise standards far higher than the industry standards. Each part and component will be subject to the rigorous reliability test before mass production to ensure that the product meets the needs of passengers during its service life and reduces routine maintenance costs.

photos
