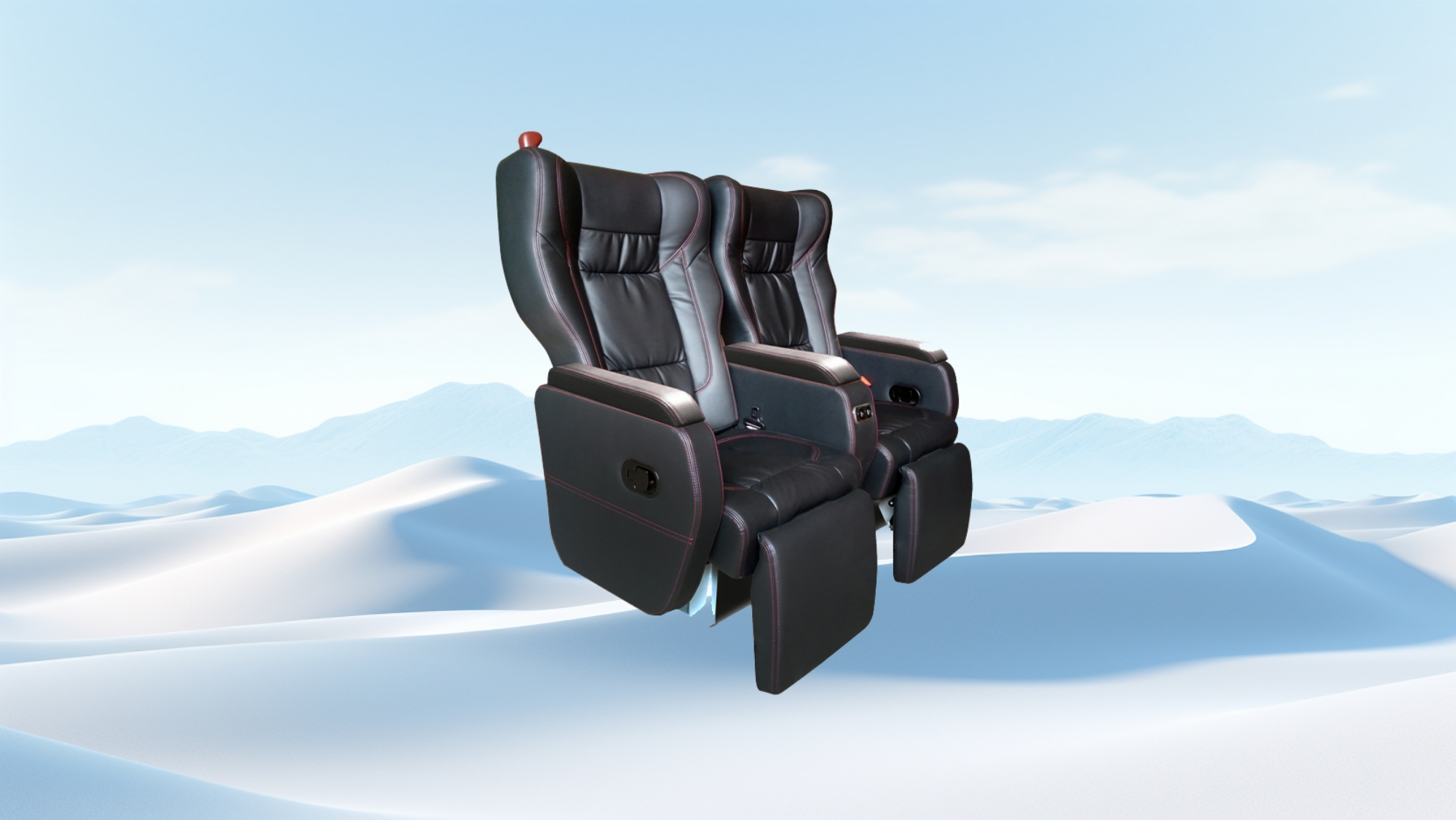

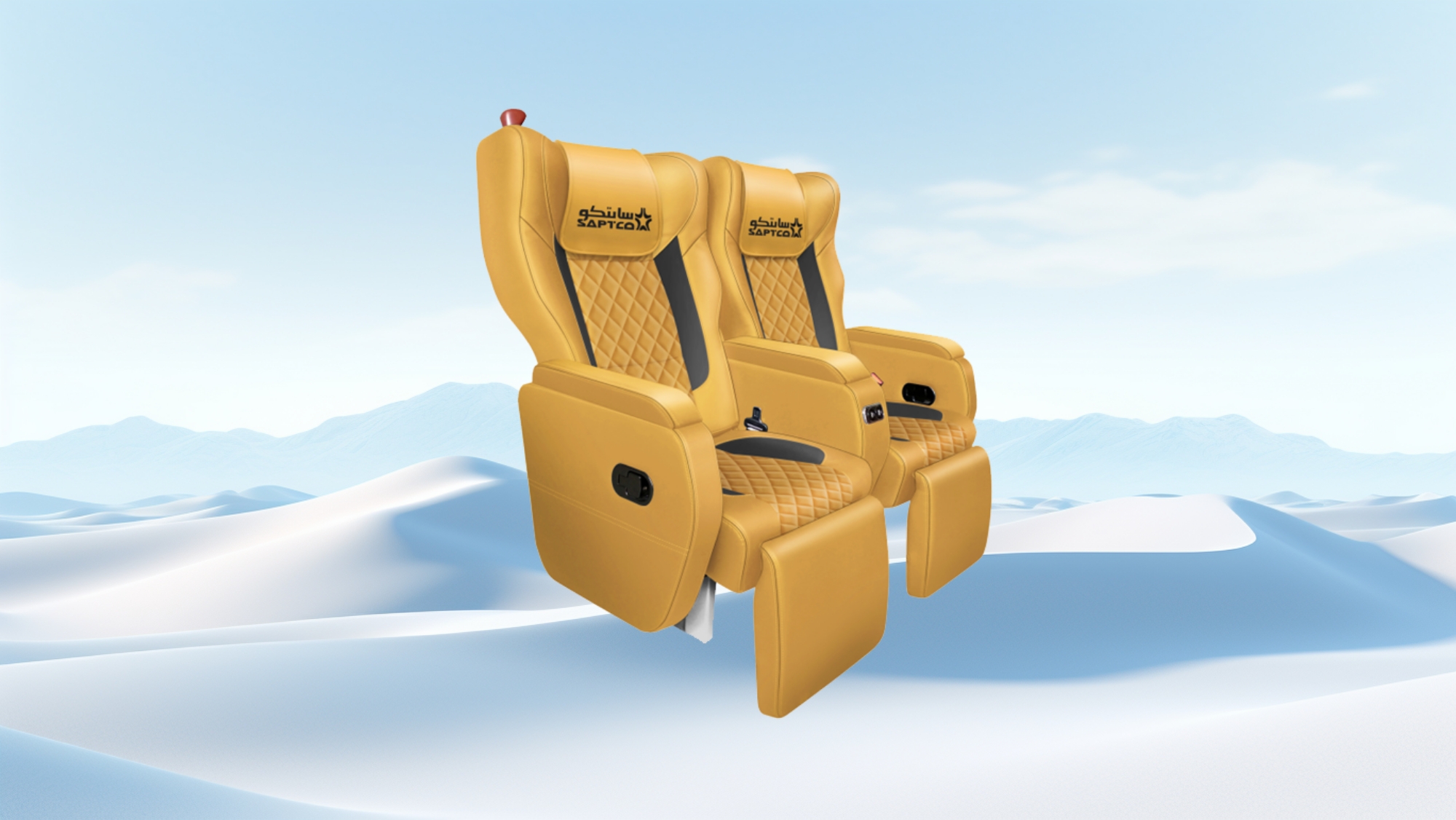

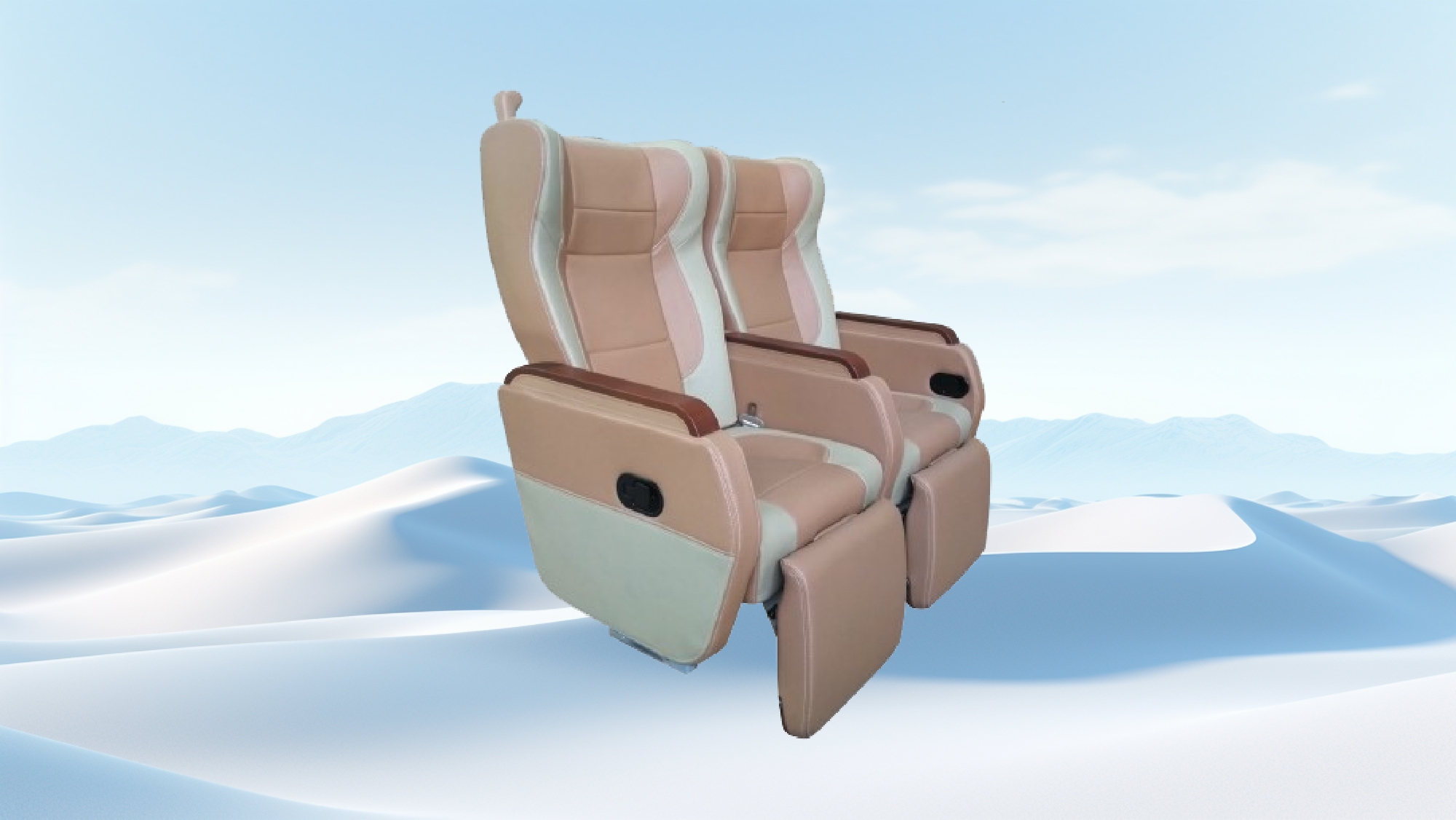

Asia YT01 (F03D) Passenger Seat

The product is suitable for the middle and high-end tourism coach and passenger transport markets in Asia, and is generally assembled on coaches with rear-mounted engines.

Double-seat configuration: 1300mm; Single-seat configuration: 665 mm

Seat width (mm)
715(-10,10)mm

Seat depth
Standard configuration: 100 (0, +5) mm

Backrest thickness (mm)
500(0,5)mm

Seat cushion width

Get a quote WhatsApp

Technical Parameters

Product parameters
Backrest height	770(-10,10)mm
Backrest width	Narrowest: 490(-5,5)mm Widest: 600(-5,5)mm
Seat cushion depth	450(-5,5)mm
Seat cushion width	500(0,5)mm
Backrest thickness	Standard: 100 (0, +5) mm Optional: 140 (0, +5) mm
Initial backrest angle	107°
Seat cushion height	425(-10,5)mm
Backrest adjustment angle	20°-30°
Lateral adjustment range	No traversing
Seat width (mm)	Double-seat configuration: 1300mm Single-seat configuration: 665 mm
Seat depth	715(-10,10)mm
Product function configurations
Backrest adjustment	Standard
Lateral adjustment	No such configuration
Fixed side handrail	Standard
Fixed middle handrail	Standard
Fixed side handrail	Standard
Top handle	Standard
Seat pocket	Standard
Forward leg rest	Standard
Tray table	Optional
Cup holder	Optional
USB	Optional
Pedal	Optional
TV	Optional
Seat belt alarm	Optional
3-point seat belt	No such configuration
2-point retracting seat belt	Optional
2-point common seat belt	Optional
Pillow towel	Optional

Unfold

Features

Safety

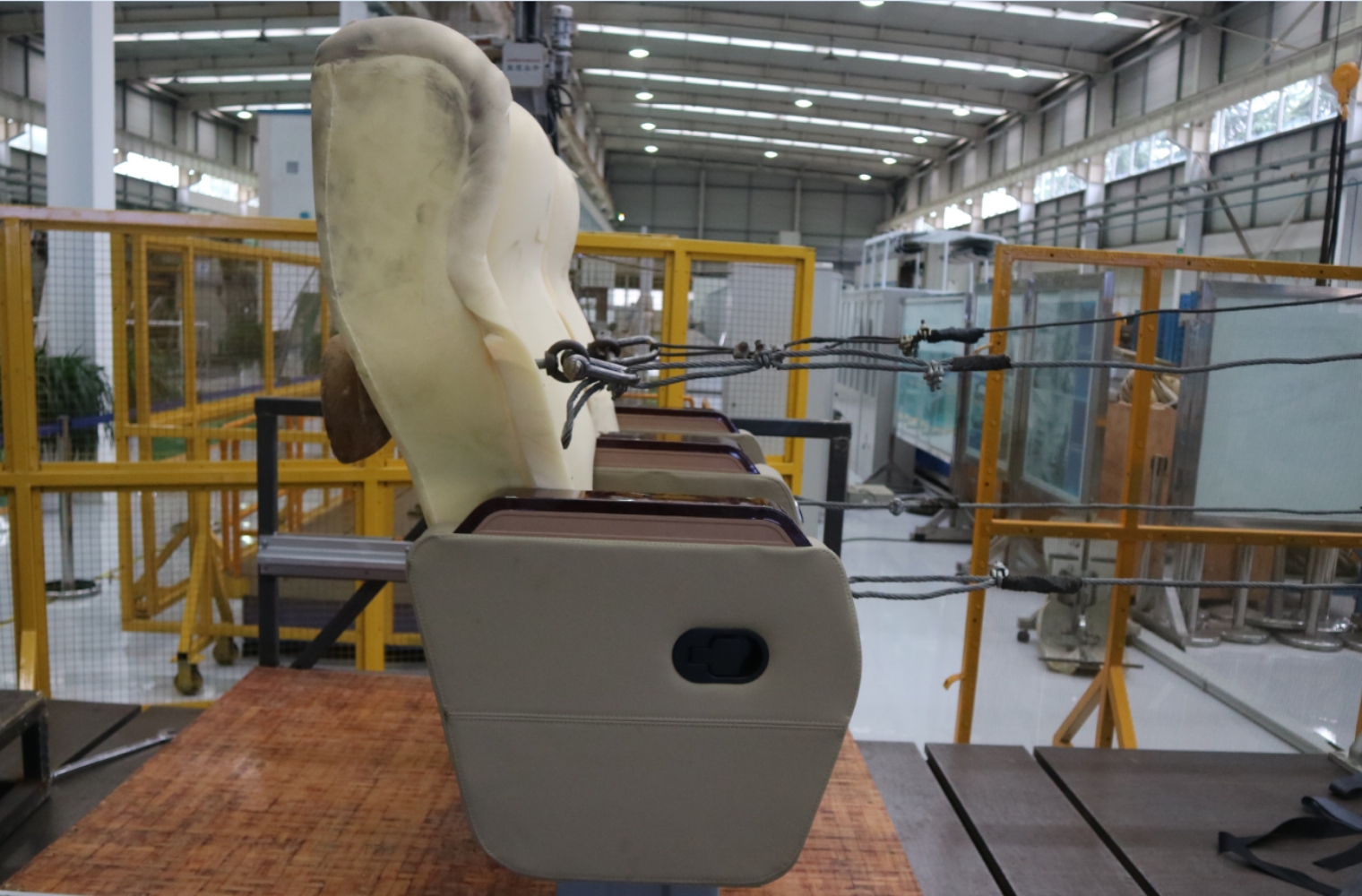

Meet the static strength requirements of ECE R80 backrest.

Comfort

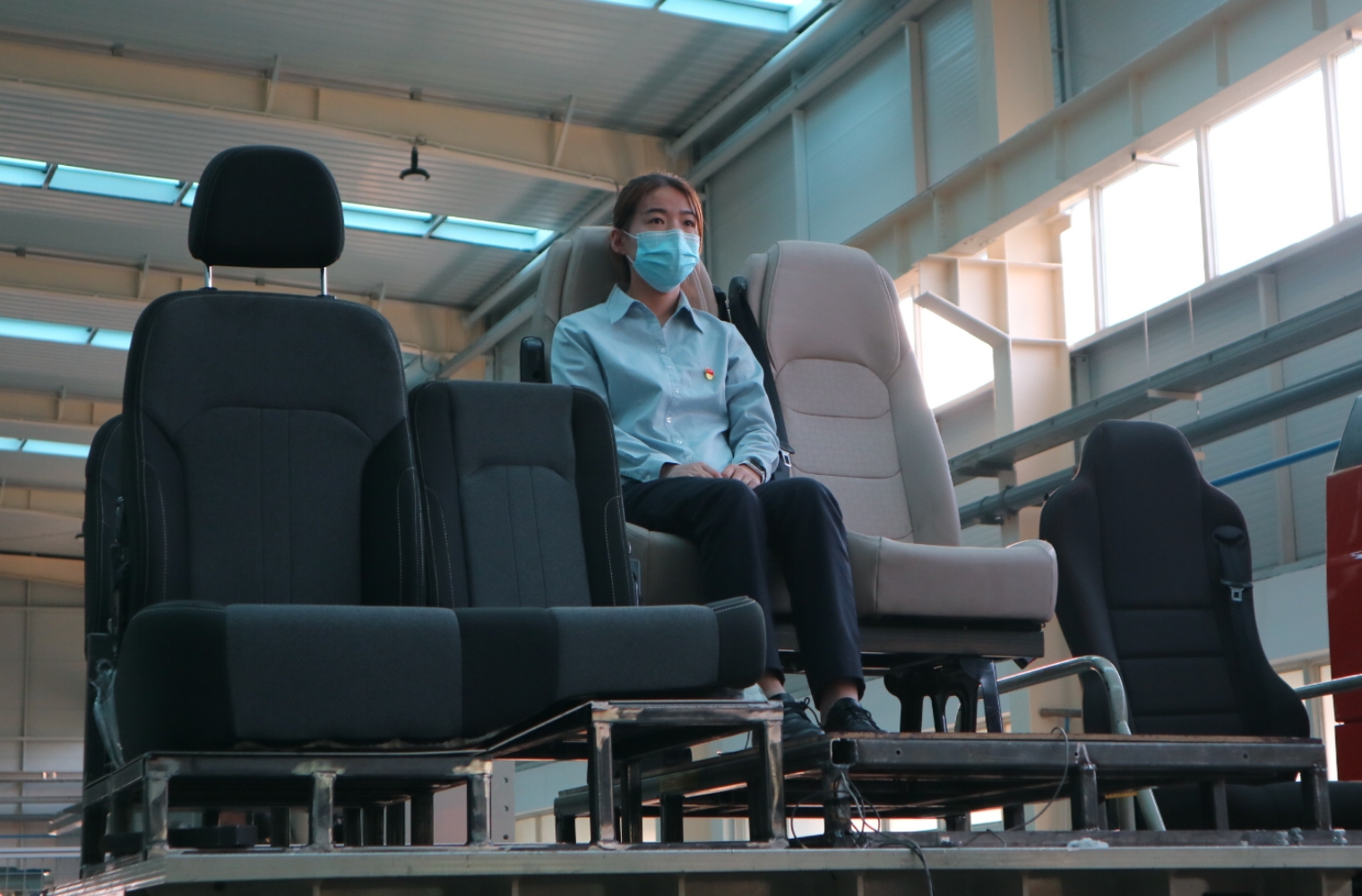

The curve design verified based on ergonomics ensures a balanced distribution of body pressure, and the unique design for the head with high-resilience foam can bring you a comfortable experience no matter the distance.

Reliability

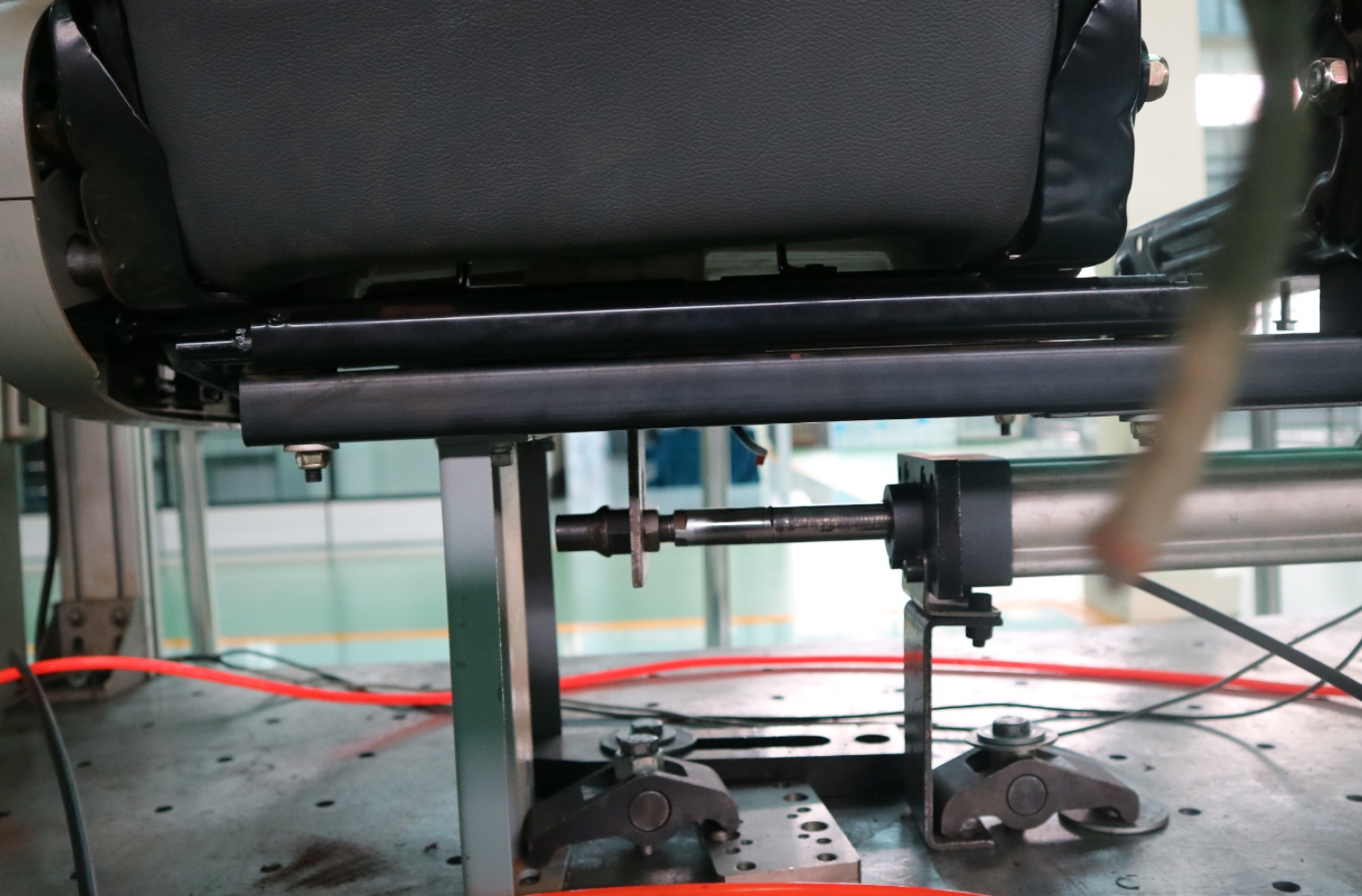

We strictly implement enterprise standards far higher than the industry standards. Each part and component will be subject to the rigorous reliability test before mass production to ensure that the product meets the needs of passengers during its service life and reduces routine maintenance costs.

photos
