SG2M Series Two/three-core Through-hole Metal Connector

The product is suitable for high-voltage and high-current connection among motor controllers, motors and other equipment of NEVs.

1000V

Rated voltage
IP68, IP69K

Waterproof grade
-40~140°C

Operating temperature
V3 vibration in QC/T 1067.1-2017

Mechanical shock

Get a quote WhatsApp

Technical Parameters

Connector model	SG2M
Number of shell cores	3-core
Specification of supporting cable	25/35/50/70mm²
Mechanical life	50 times (Number of times of disassembly and assembly)
Mechanical vibration shock	V3 vibration in QC/T 1067.1-2017
Terminal connection mode	Crimping
Rated current	Max. 300A (70 mm² conducting wire)
Rated voltage	1000V
Withstand voltage	4000V
Insulation resistance	1000V DC, ≥ 5000 MΩ (normal temperature and humidity); ≥ 100 MΩ (damp heat state)
Temperature rise	＜55K
Degree of protection	IP68, IP69K
Operating temperature	-40℃～+140℃
Flame retardant grade	Material UL94 V0
Salt spray grade	96H
Supporting bolt of mounting panel	M6
Insulator	PA66

Unfold

Features

Platform-based rear-through design

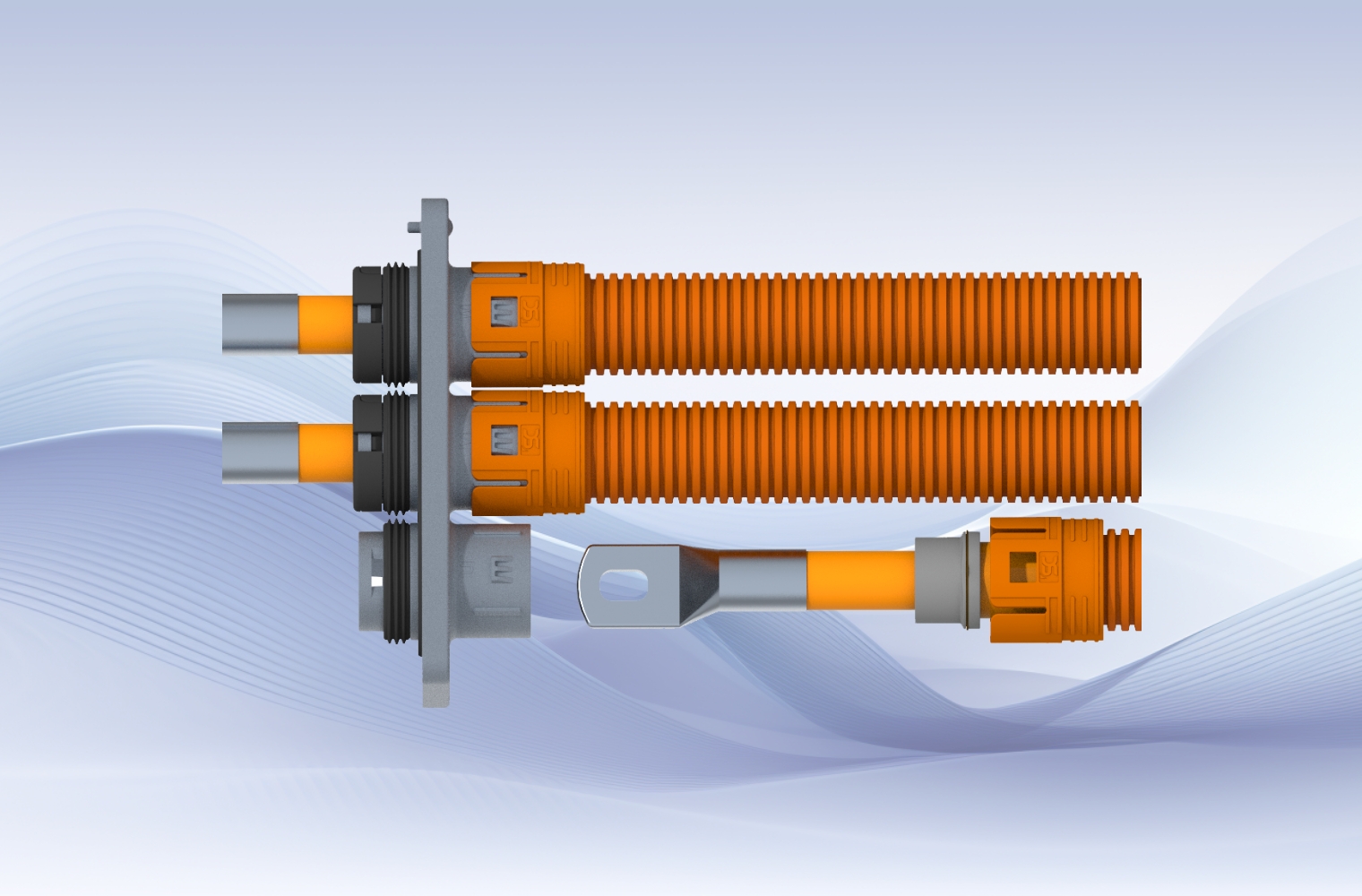

The supporting cable of SG2M through-hole connector has a specification of 16-70 mm². The special shielding design enables it to be crimped before assembly, thus improving the wiring efficiency.

Multi-layer protection design

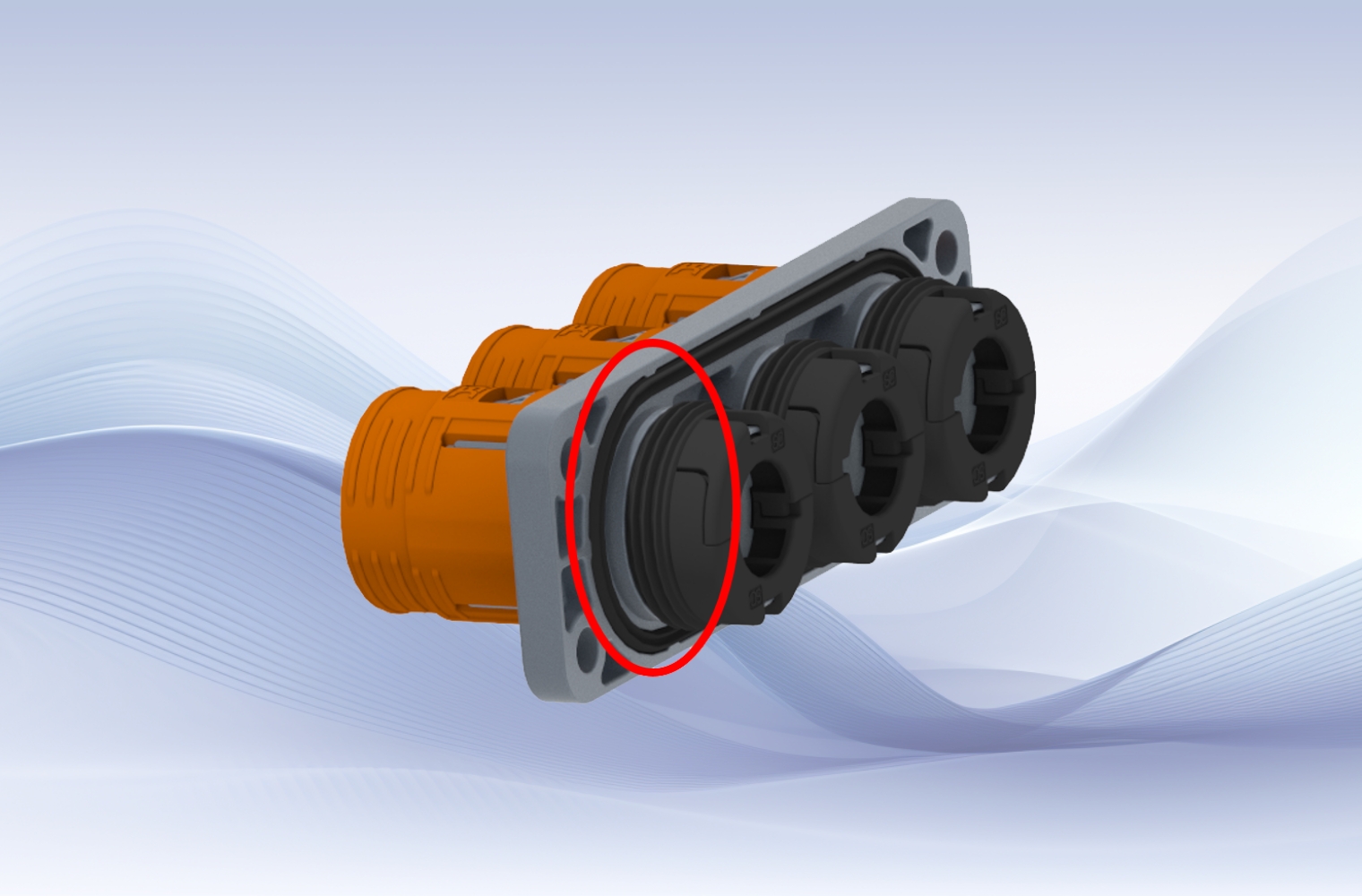

The SG2M three-core through-hole connector has a double-layer sealing structure at the installation position and cable double-side sealing structure, resulting in higher waterproof grade and reliability.
