SG3M Series Two/three-core Through-hole Metal Connector

The product is suitable for high-voltage and high-current connection among motor controllers, motors and other equipment of NEVs.

1000V

Rated voltage
IP68, IP69K

Waterproof grade
-40~140°C

Operating temperature
V3 vibration in QC/T 1067.1-2017

Mechanical shock

Get a quote WhatsApp

Technical Parameters

Connector model	SG3M
Number of shell cores	2-core, 3-core
Specification of supporting cable	16/25/35/50/70mm²
Mechanical life	50 times (Number of times of disassembly and assembly)
Mechanical vibration shock	V3 vibration in QC/T 1067.1-2017
Terminal connection mode	Crimping
Installation interface	Meet AK standard
Rated current	Max. 300A (70 mm² conducting wire)
Rated voltage	1000V
Withstand voltage	4000V
Insulation resistance	1000V DC,≥ 5000 MΩ (normal temperature and humidity); ≥ 100 MΩ (damp heat state)
Temperature rise	＜55K
Degree of protection	IP68, IP69K
Operating temperature	-40℃～+140℃
Flame retardant grade	Material UL94 V0
Salt spray grade	96H
Supporting bolt of mounting panel	M6
Insulator	PA66

Unfold

Features

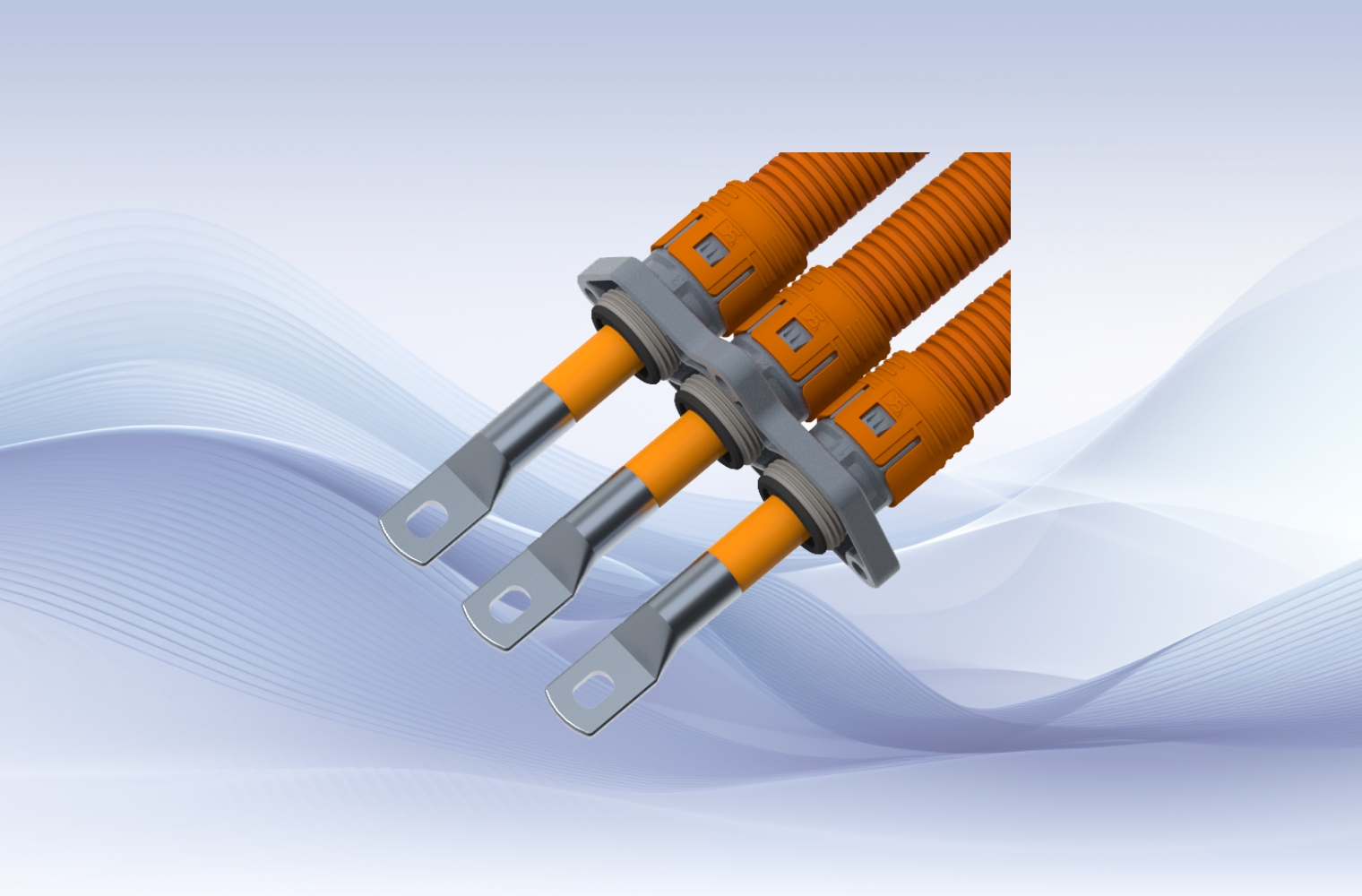

Platform-based design

The connector is designed with standard AK panel dimensions, and the specification of supporting cable is 16-70 mm².

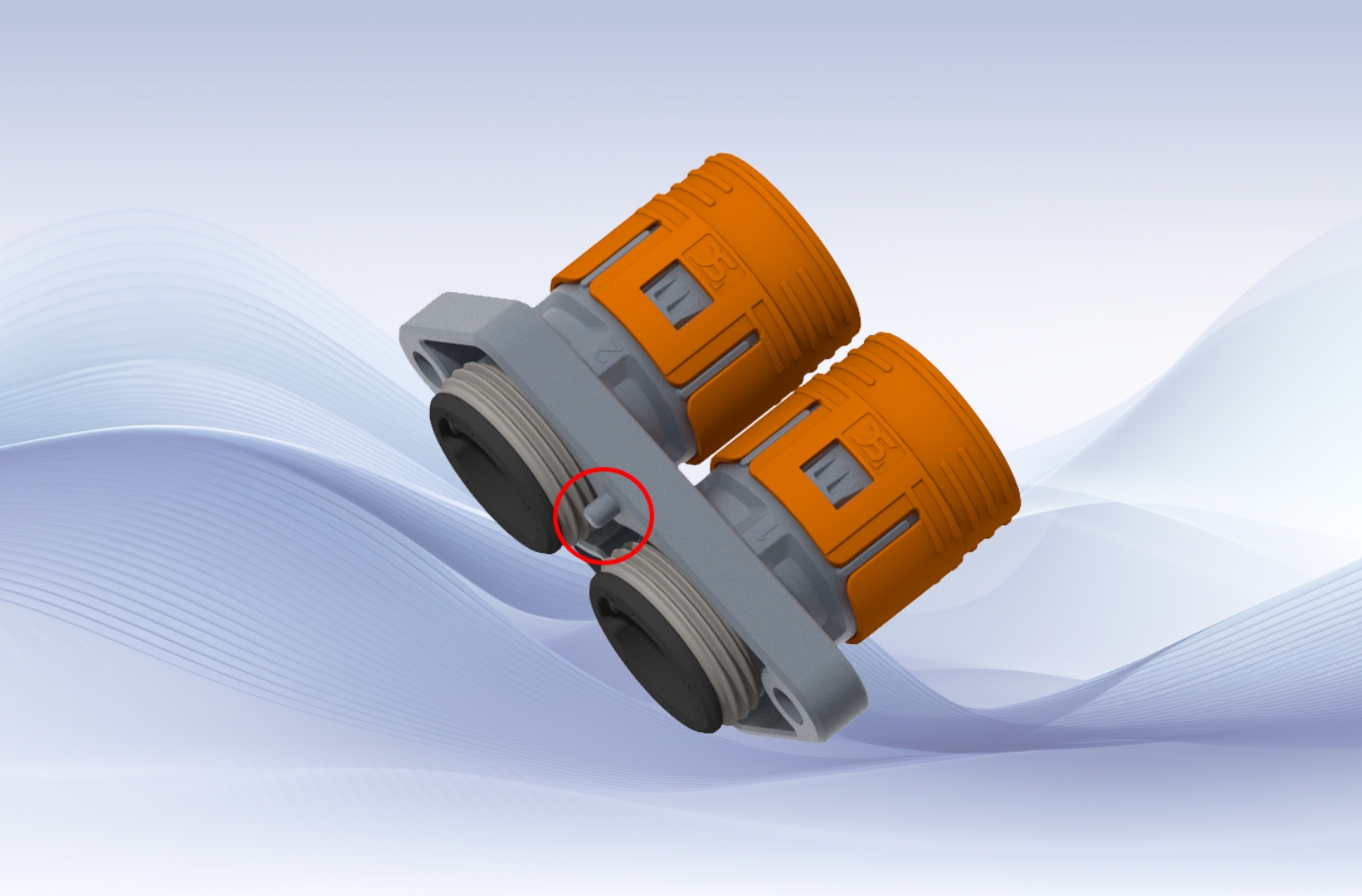

Anti-misplug design

The SG3M two-core through-hole connector has three anti-misplug key positions, which enables the installation of multiple such connectors on one equipment at the same time.
