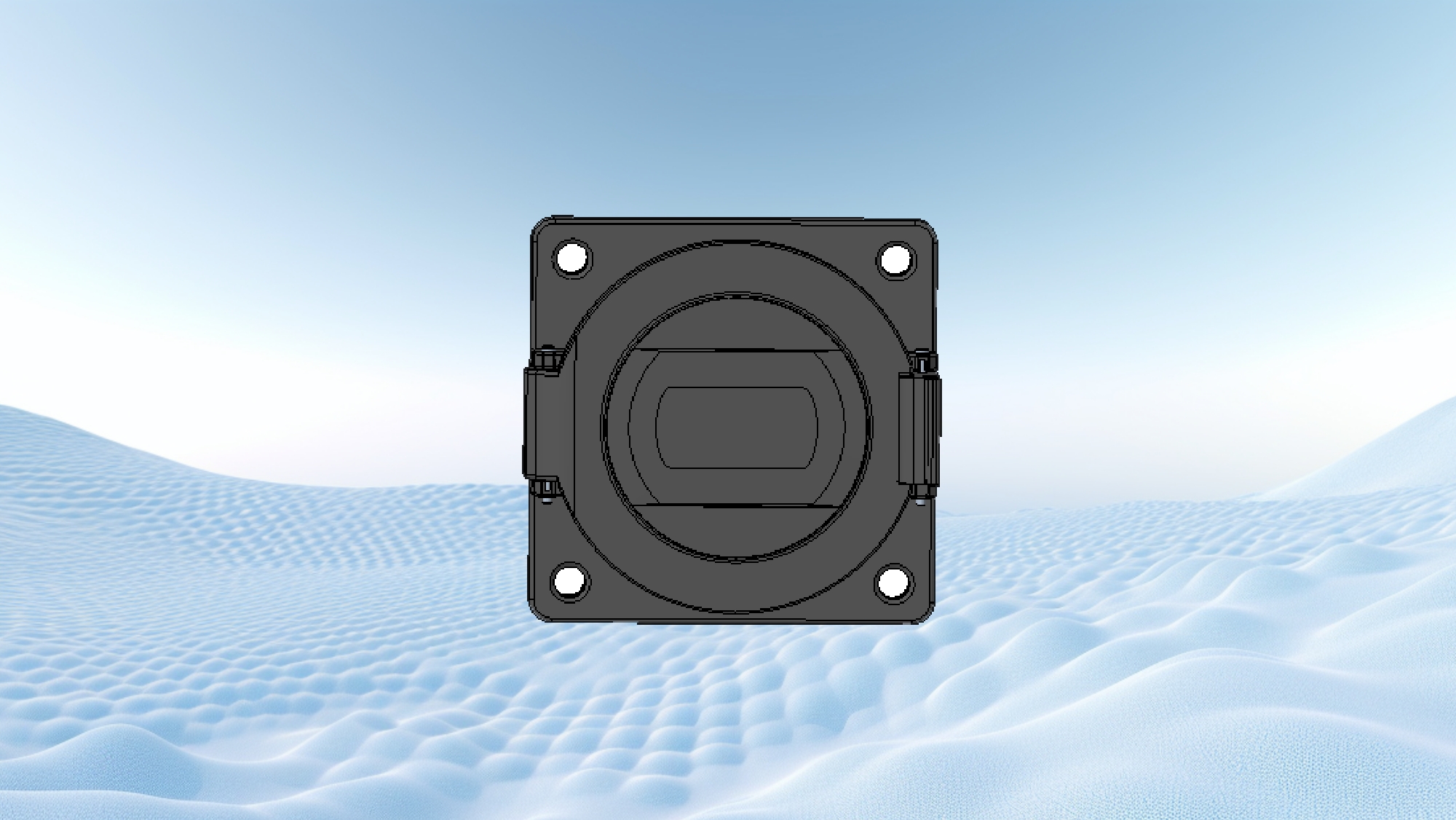

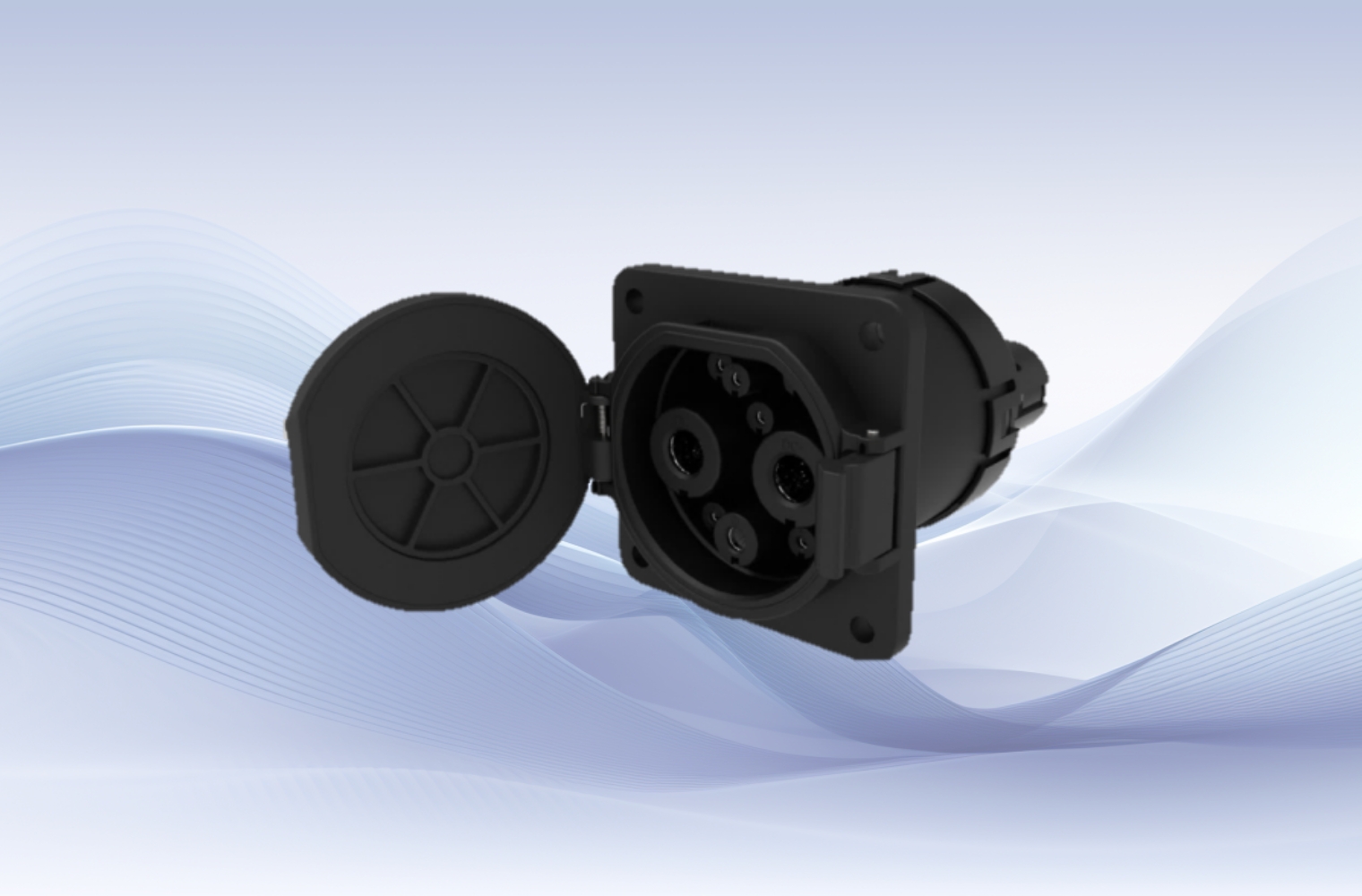

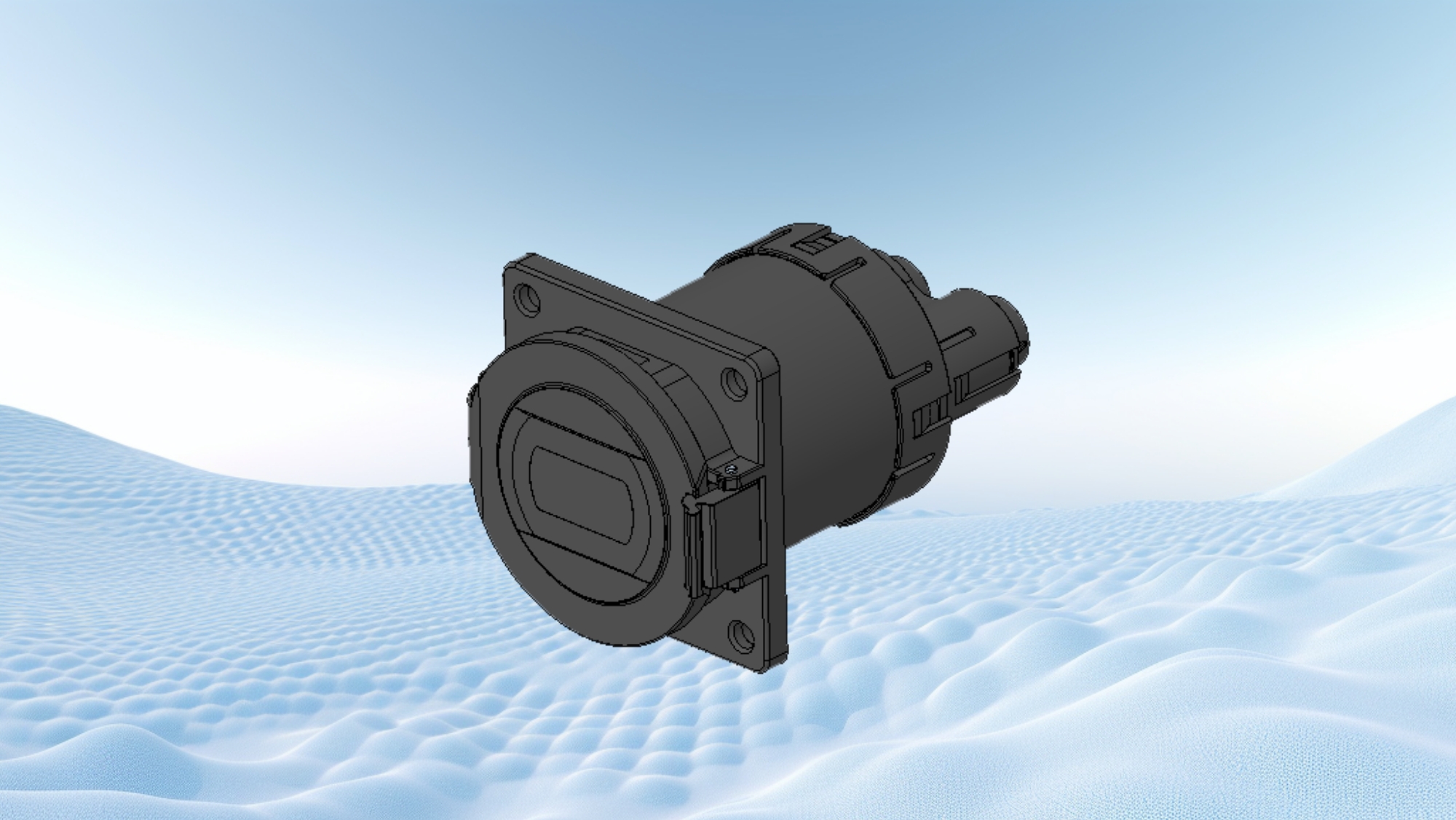

RussianChinese National Standard DC Fast-swap Charging Socket
The Chinese national standard DC fast-swap charging socket is installed on the electric vehicle, and achieves the DC charging function via the DC charging gun. The product meets GB/T 20234.3-2015.
-
10,000 times
Mechanical life
-
-30~50°C
Operating temperature
-
750/1000V
Rated voltage
-
125~600A (125A, 200A, 250A, 300A, 400A, 500A, 600A)
Rated current
Technical Parameters
| Mechanical performance | ||
| Mechanical life | 10,000 times | |
| Mechanical vibration shock | GB/T 2323.10-2008 Test Fc; Guidance; Vibration 10Hz～25Hz 1.2mm 25Hz～500Hz 30m/s² |
|
| Electrical performance | ||
| Rated current | DC interface: DC+/DC-: 600/500/400/300/250/200/125A | |
| Rated voltage | DC interface: DC+/DC-/PE: 1000V S+/S-/A+/A-/CC2: 30V | |
| Withstand voltage | DC+/DC-/PE: 3000V AC/1min. | |
| Insulation resistance | 1000V DC≥100MΩ (DC+/DC-/PE) | |
| Temperature rise | <50K | |
| Environmental performance | ||
| Degree of protection | IP55 (with accessories) | |
| Operating temperature | -30℃~+50℃ | |
| Salt spray grade | 96H | |
| Main materials | ||
| Shell | PA | |
| Insulator | PA | |
| Sealings | Silicone rubber | |
| Contacts | Copper alloys | |
Unfold
Features
photos
Customer Cases
-
SINOTRUK heavy truck
The heavy truck is equipped with two 500A DC charging sockets at the same time, thus achieving double-plug megawatt charging.
-
Yutong concrete mixer truck
If the charging gun is pulled out with live power during use by the customer, the terminal and other parts can be replaced to complete the charging gu
