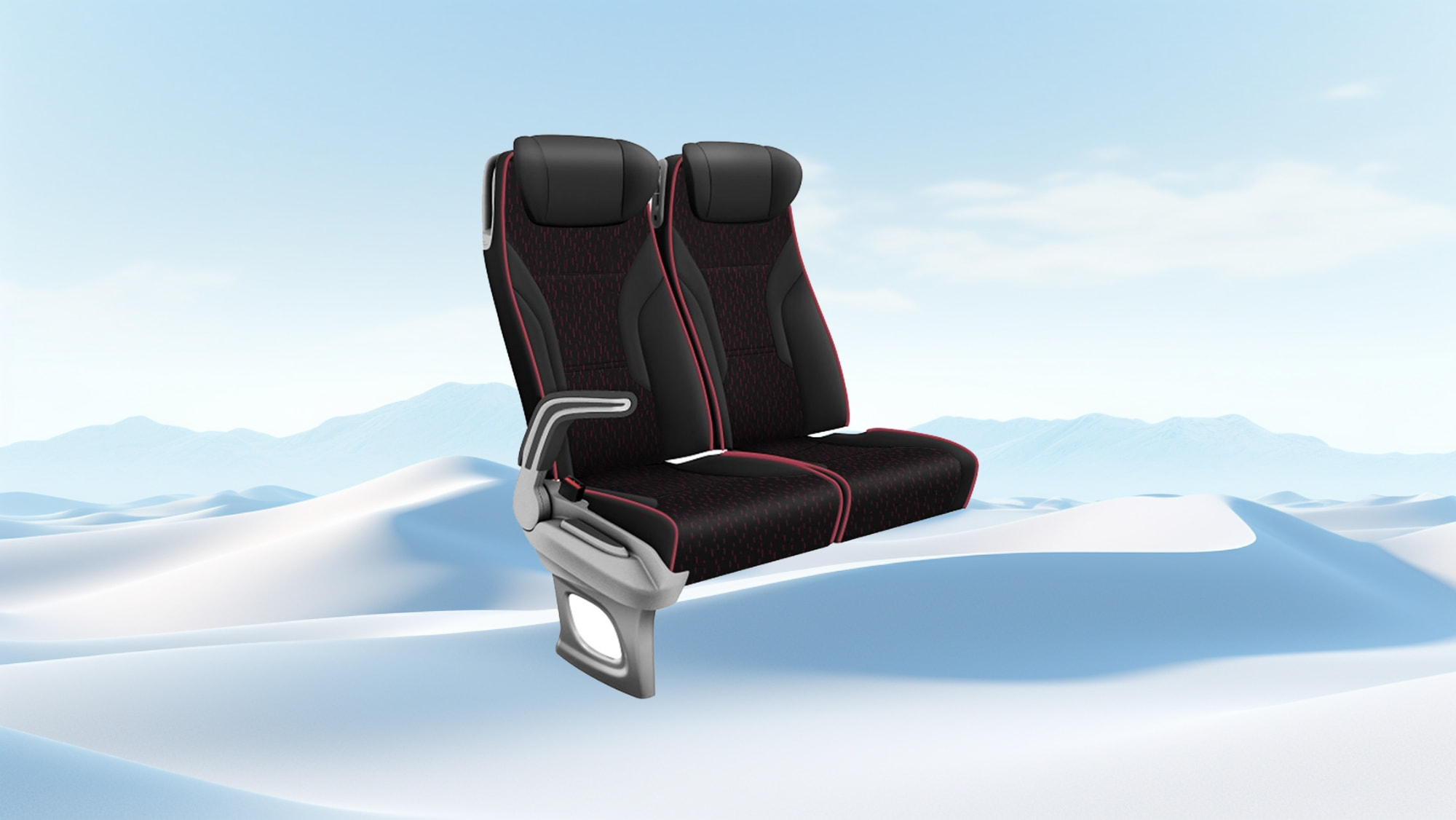

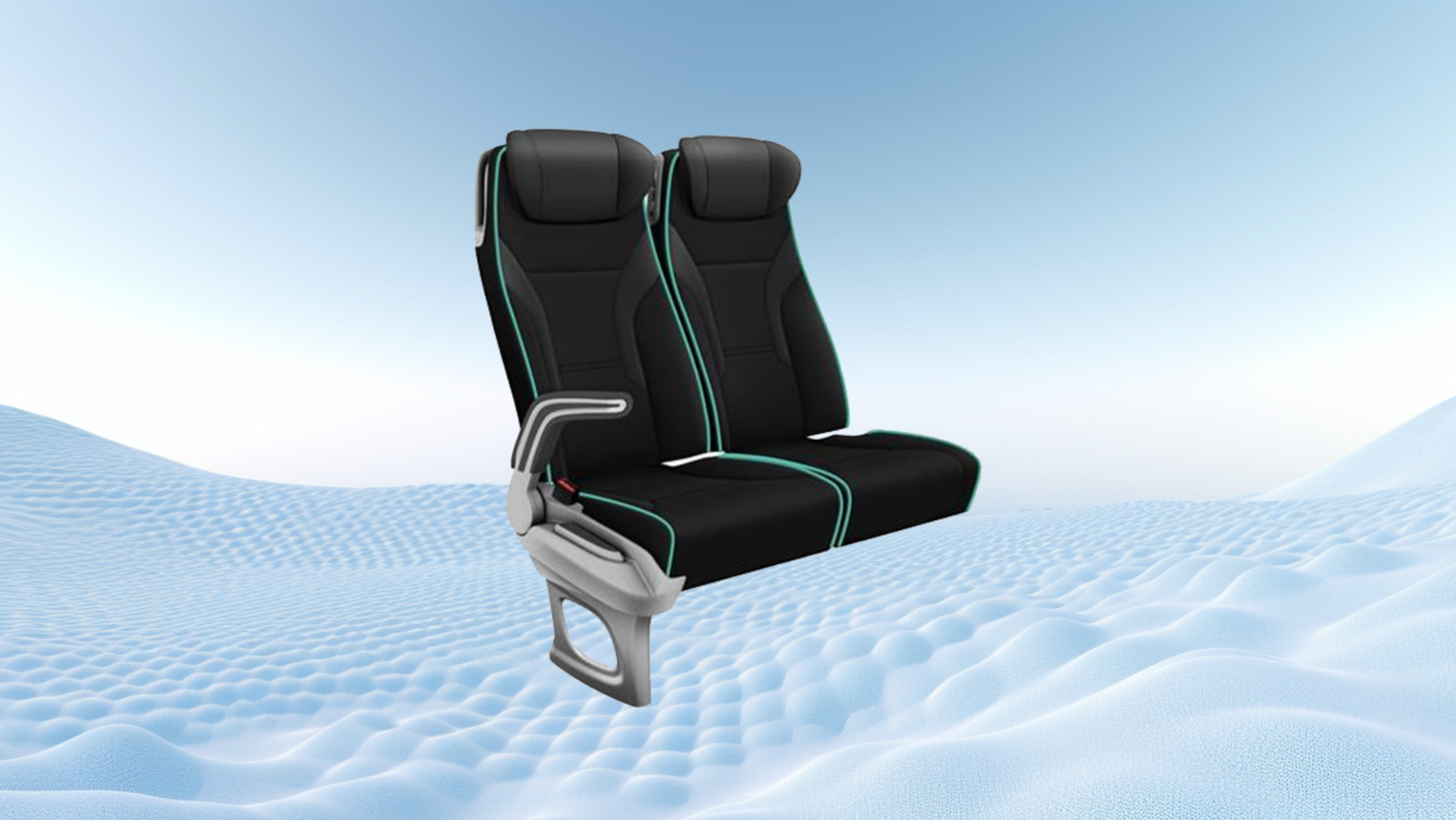

YTH07 High-end Passenger Vehicle Passenger's Seat

The product is applicable to T-series high-end tourist models, meeting different market demands such as passenger transportation, tourism, commuter travel.

  • 990mm

    Width of the whole seat (mm)

  • 690(0,-10)mm

    Depth of the whole seat

  • 35mm/45mm

    Backrest thickness (mm)

  • 440(-5,5)mm

    Seat cushion width

Technical Parameters

Product Parameter Information
Backrest height 738(-10,10)mm
Backrest width 440(-5,5)mm
Seat cushion depth 450(-5,5)mm
Seat cushion width 440(-5,5)mm
Backrest thickness

Economic: 30 (0, +5) mm

Comfortable: 45 (0, +5) mm

Backrest initial angle 111°
Seat cushion height 460(-10,10)mm
Backrest adjustment angle 17°
Lateral adjustment range 60mm
Width of the whole seat (mm) 990(-10,10)mm
Depth dimension of whole seat 690(-10,10)mm
Product Function Configuration Information
Backrest adjustment Standard configuration
Lateral adjustment Standard configuration
Side handrail Standard configuration
Back handle Standard configuration
Folding/lifting head rest Optional
Seat pocket Standard configuration
Tray table/cup holder Optional
USB Optional
Pedal Optional
Seat belt alarm Optional
3-point seat belt Optional
2-point retracting seat belt Optional
Pillow towel Optional
Trash can Optional
Unfold

Features

High safety

The frame is made of high-strength steel, which meets the strength requirements of EU ECE standard.

Good comfort

According to the man-machine curve checked by European passengers, the backrest fits better; The multi-density foaming agent fabric material is used to improve the riding feeling. At the same time, the cushion snake spring is adopted to improve the shock absorption performance and basic comfort of the seat.

Environmental protection

The backrest is of steel frame structure, completely abandoning plywood material to reduce the emission of formaldehyde and TVOC peculiar smell. The professional and strict selection of environmentally friendly materials makes the seat smell fresher.

Functionality

The seat is added with three-level adjustable plastic foot pedals, four-item adjustable headrests, integrated flip cup holder and mobile phone slot functions and an independent tray table, which are more functional and practical.

photos
