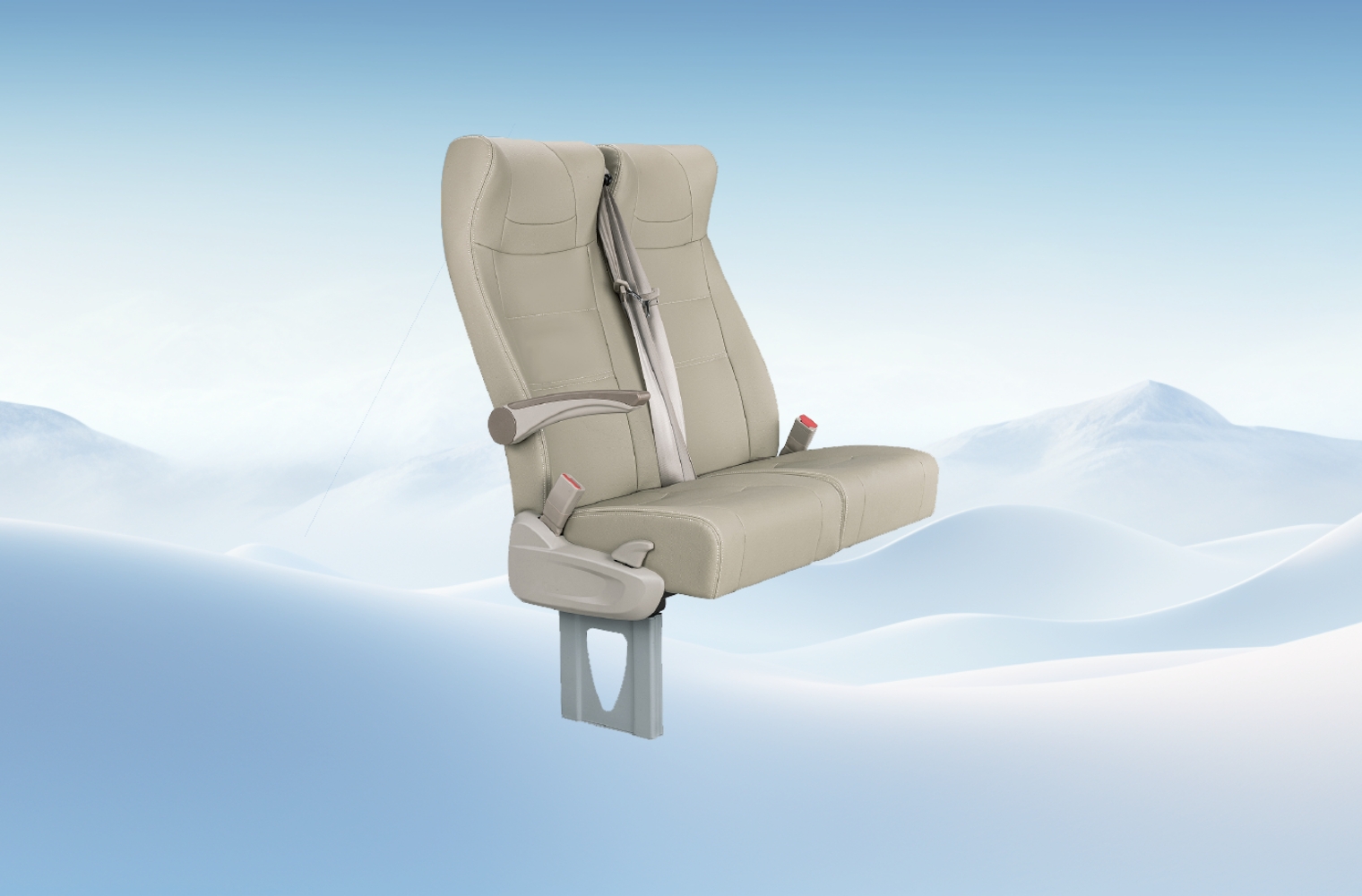

YT15A (F06L) Passenger Seat

The product is suitable for passenger seats on suburban and city buses.

  • 420 mm

    Seat cushion width

  • 440 mm

    Seat cushion depth

  • 106°

    Design angle of backrest

  • 918*680*1081 mm

    Overall dimensions

Technical Parameters

Seat model YT15A(F06L)
Seat width 918±10mm
Seat depth 680±10mm
Seat height 1081±10mm
Seat cushion width 425±5mm
Seat cushion depth 440±10mm
Backrest height 730±10mm
Design angle of backrest 106°
Adjustable angle of backrest 16°
Seat belt Standard configuration (three-point or two-point type)
Handrail Standard
Backrest adjustment Standard
Fabric seat cover Standard
Leather seat cover Optional
Seat pocket Optional
USB Optional
Side handle Optional
Unfold

Features

Safety

The seat complies with test standards for backrest energy absorption, backrest static strength, and seat belt anchor point strength. It has obtained domestic 3C certification and is the test seat designated by the national standard publicity and implementation meeting.

Comfort

The seat takes into consideration factors such as human body size, weight, and seating posture. A well-designed seat can help passengers maintain good posture, distribute body pressure evenly, and provide a comfortable seating experience.

Environmental Friendliness

With a steel frame backrest and parts and components like seat covers and foam made from rigorously chosen eco-friendly materials, your journey is guaranteed to be fresh and healthy.

Functionality

The seat is user-friendly, equipped with adjustable features, armrests, and USB charging, catering to diverse user preferences for functionality.
