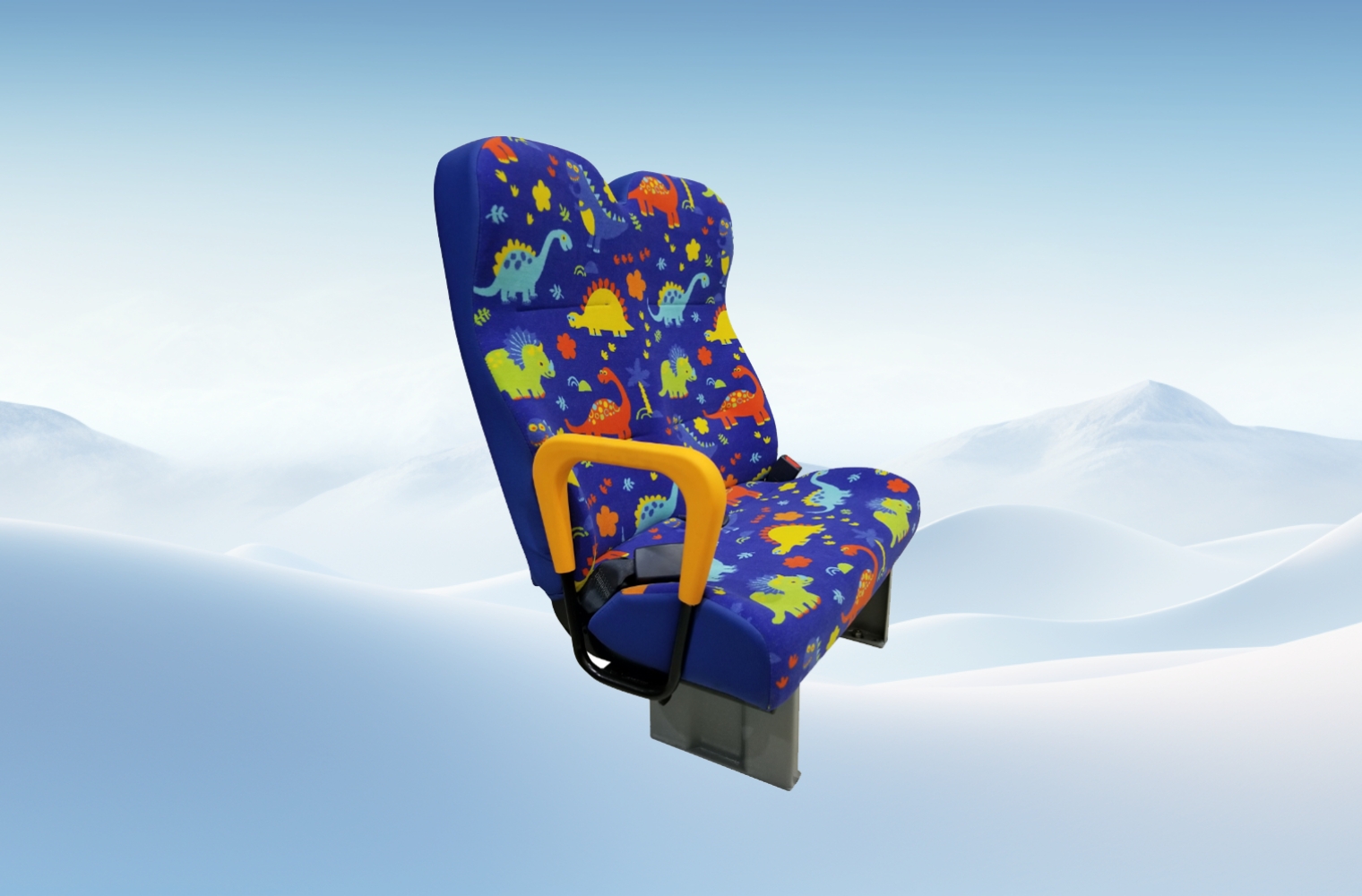

School Bus Seat

The product is applicable to all series of school buses for toddlers, primary school students, primary and secondary school students.

  • 675±5mm (double for toddlers), 720±5mm (double for primary school students), 850±5mm (double for primary and secondary school students)

    Seat cushion width

  • 335±5mm (double for toddlers), 360±5mm (double for primary school students), 365±5mm (double for primary and secondary school students)

    Seat cushion depth

  • 106°

    Design angle of backrest

  • 45±5mm

    Backrest thickness

Technical Parameters

Parameters
Seat model Type Dimension/mm National standard/mm
Toddler seat Backrest height 610±5 600-710
Backrest thickness 45±5 ≥40
Seat cushion width Triple seat: 1010±5 Double seat: 675±5 ≥330
Seat cushion height 290±5 220-300
Seat cushion depth 335±5 ≥300
Seat cushion thickness 90±5 N/A
Primary school student seat Backrest height 715±5 710-860
Backrest thickness 45±5 ≥40
Seat cushion width Triple seat: 1070±5 Double seat: 720±5 ≥350
Seat cushion height 370±5 280-380
Seat cushion depth 360±5 ≥350
Seat cushion thickness 100±5 N/A
Middle school and primary school student seat Backrest height 715±5 710-860
Backrest thickness 45±5 ≥40
Seat cushion width Triple seat: 1165±5 Double seat: 785±5 Double seat: 850±5 ≥380
Seat cushion height 415±5 300-450
Seat cushion depth 365±5 ≥350
Seat cushion thickness 100±5 N/A
Function configuration
Seat belt Standard configuration (two-point type)
Handrail Standard
Fabric seat cover Standard
Unfold

Features

Safety

Meet safety performance requirements through dynamic collision, backrest energy absorption, and other relevant regulatory tests.

Comfort

Designed in accordance with the GB/T26158 Anthropometric Dimensions for Chinese Children standard, the 75th percentile human body size template is used to verify comfort, and the backrest curve conforms to ergonomics; The backrest angle is 106°, which is equivalent to the initial angle of a normal passenger's seat; Backrest and seat cushion sponge curve optimized for improved visual and seating comfort; Utilizes high-density sponge, with moderate softness and firmness, making seating more comfortable; The seat cushion angle is increased to 6°, preventing schoolchildren from sliding forward in the event of sudden braking, enhancing riding comfort.

Aesthetics

The design is simple and elegant, with fabric patterns full of childlike charm, tailored to the preferences of schoolchildren of different ages groups, exuding charm and friendliness.

Functionality

Equipped with three types of configurations including seats for toddlers, primary school students, and primary and secondary school students, it can meet the riding needs of school children of different ages. Comfort: The seat design fully takes into account factors such as human body dimensions, weight, and seating posture. A reasonable seat design enables passengers to maintain a good sitting position, with even distribution of body pressure, providing a comfortable seating experience.
