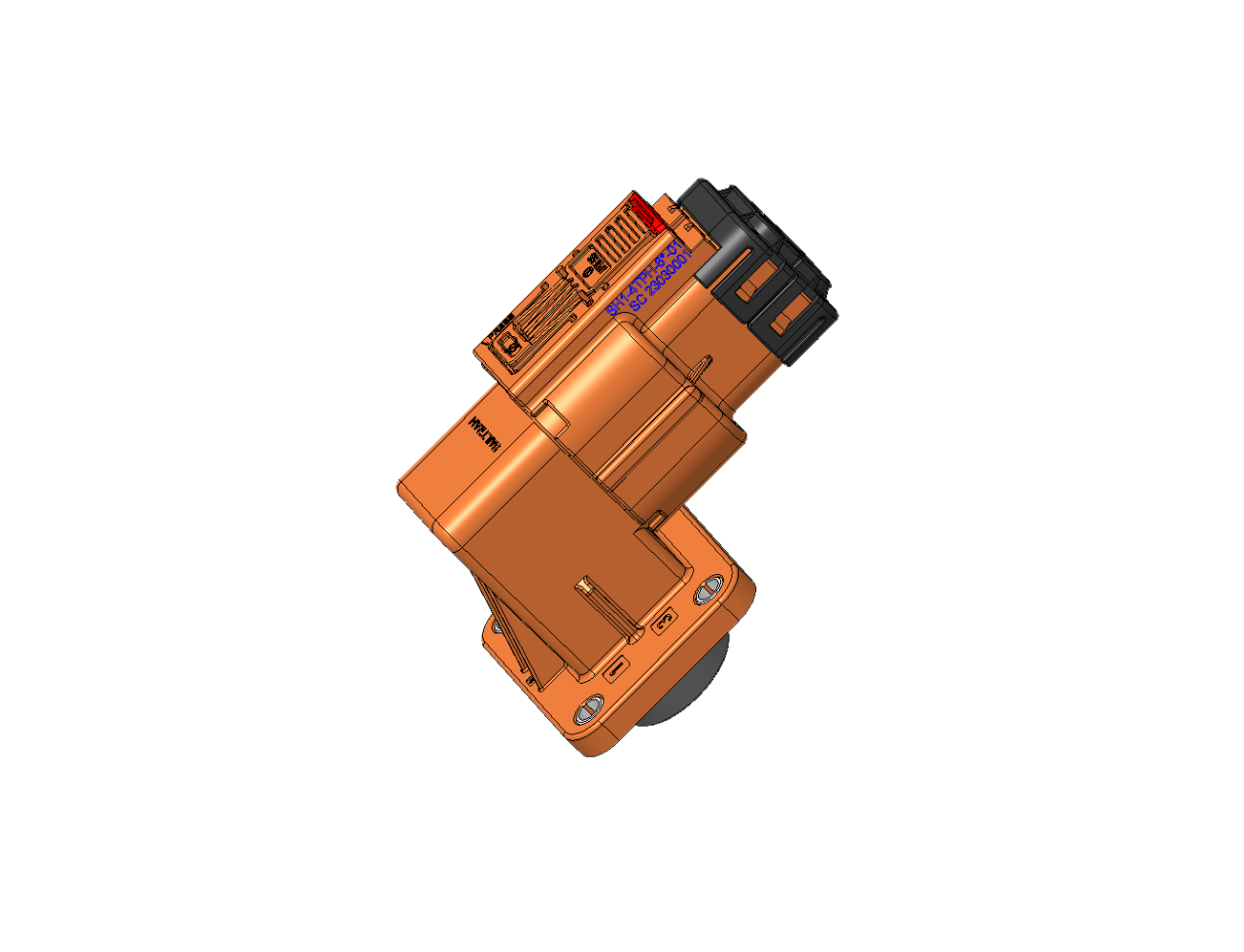

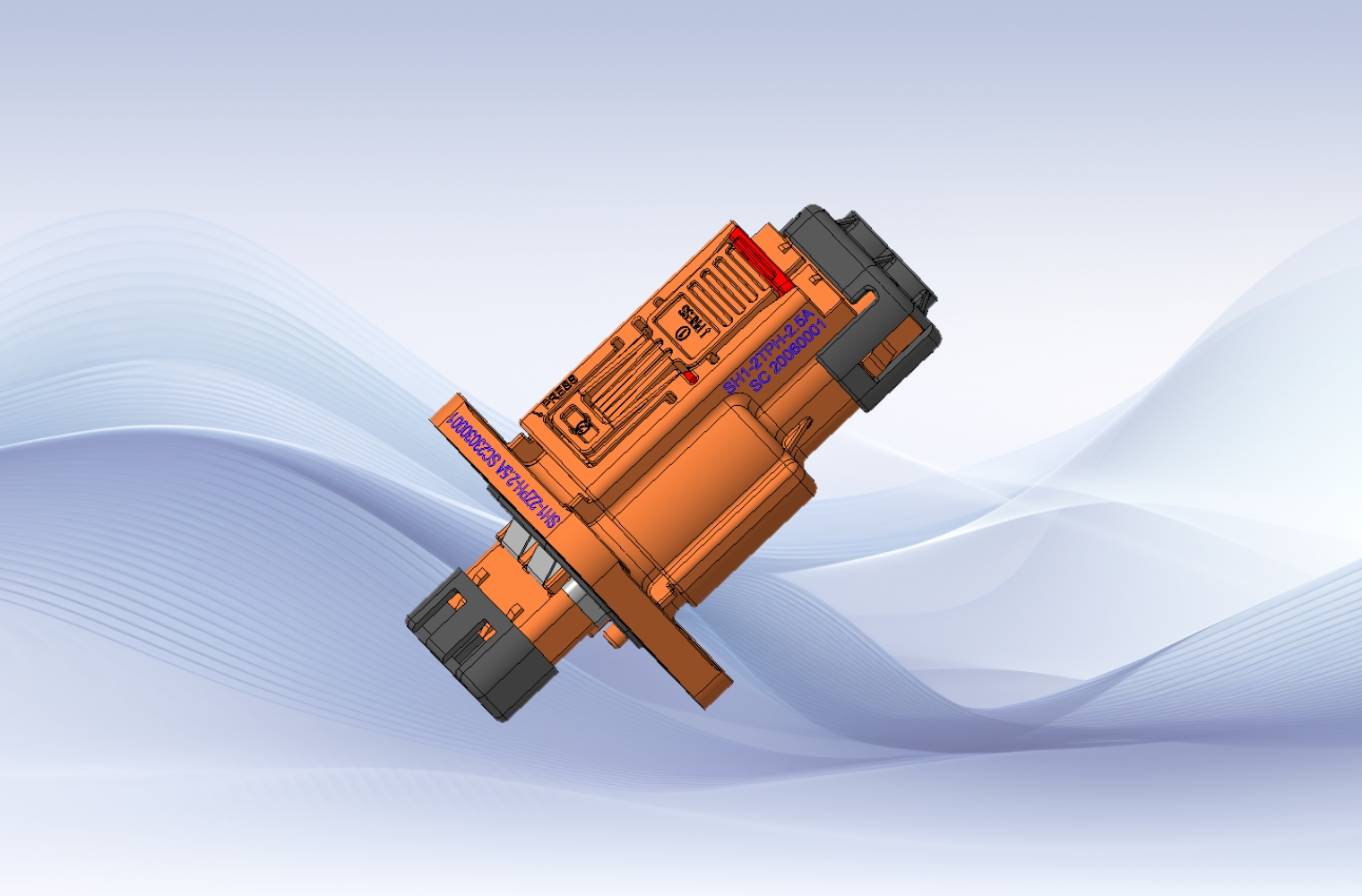

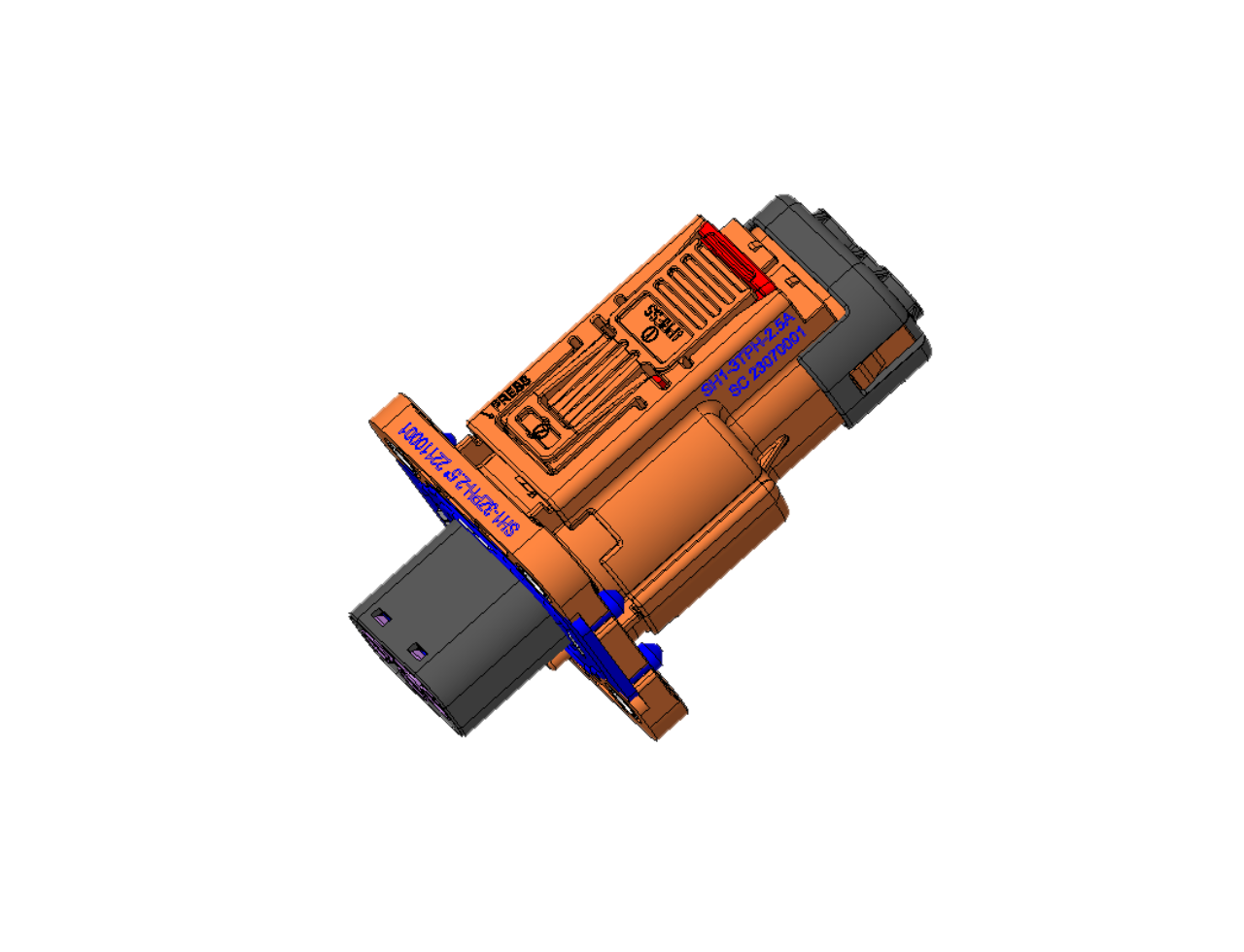

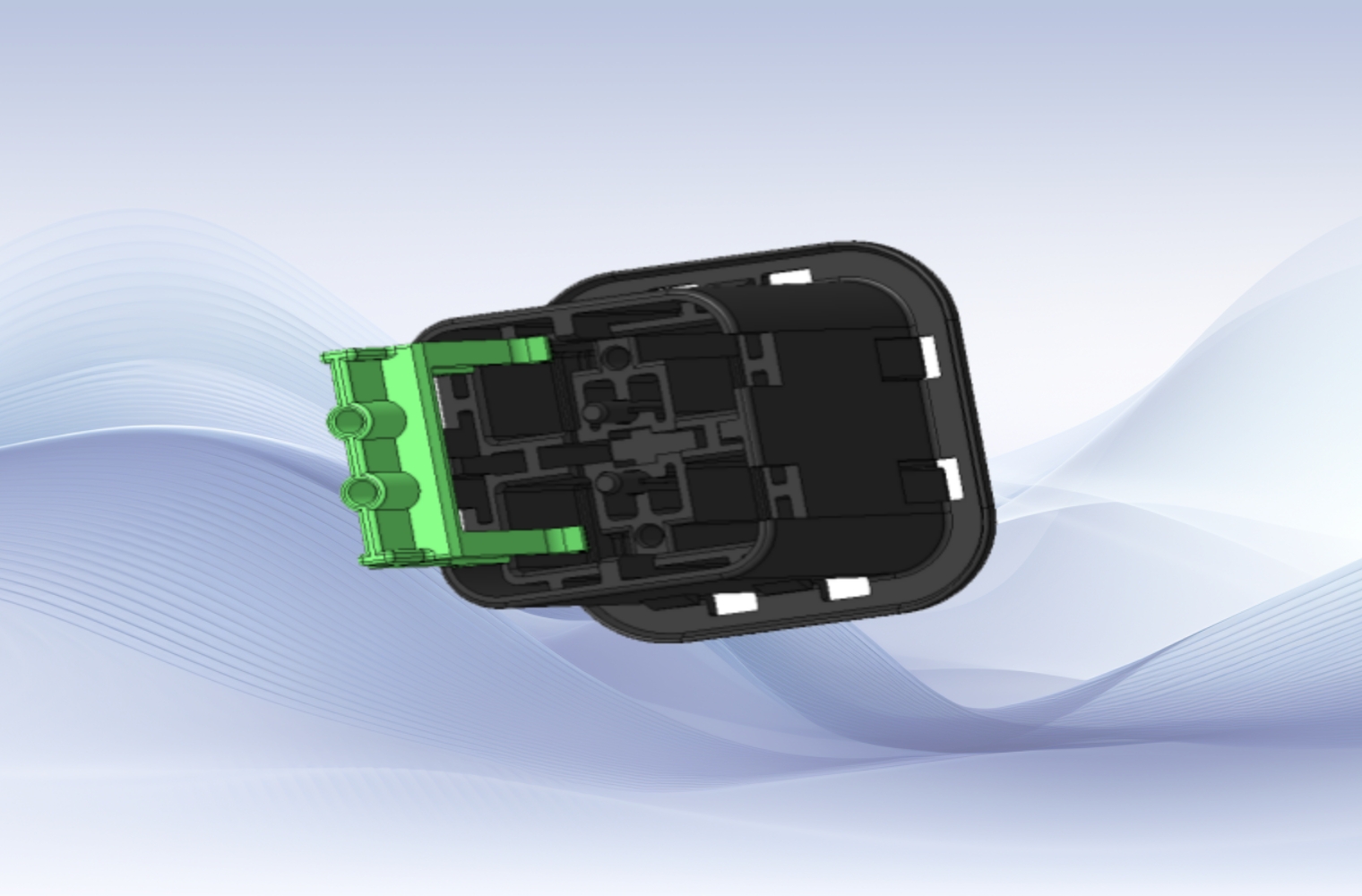

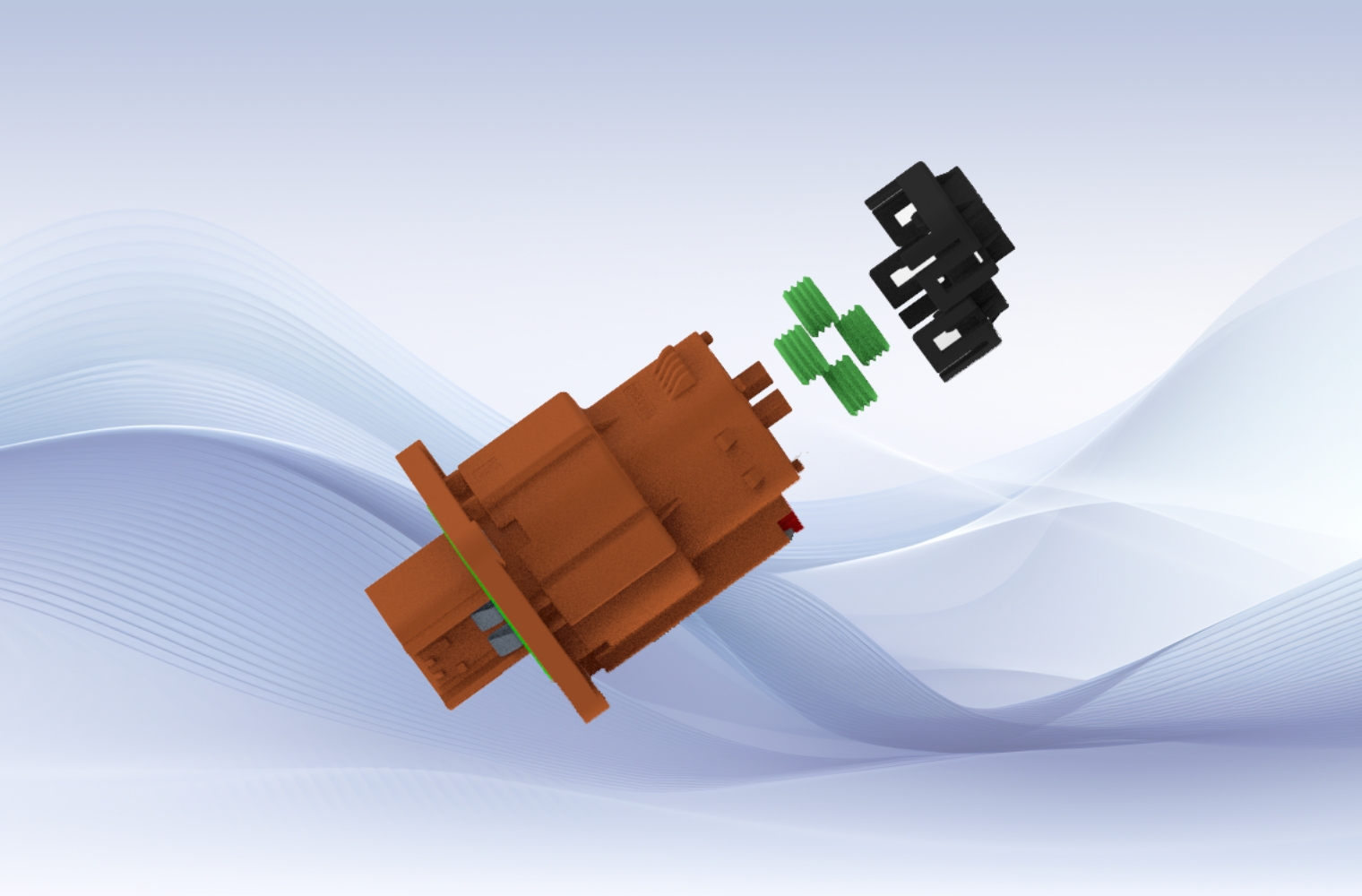

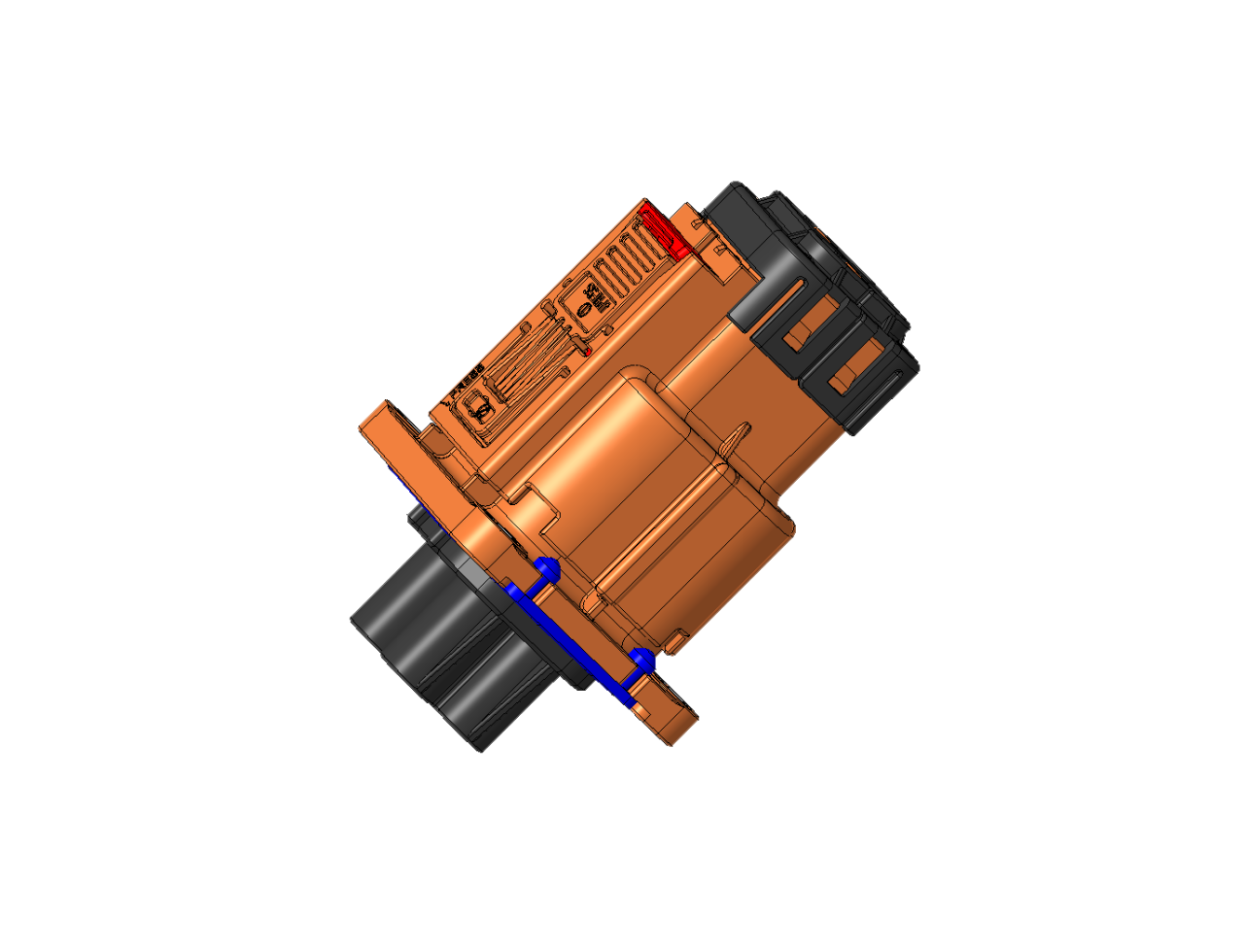

RussianSH1 Series Low Current Plastic Connector
SH1 series products are low current plastic connectors with high-voltage interlock, which are suitable for the electrical connection between on-board units such as motor controller, PDU, all-in-one controller, PTC, air compressor.
-
1000V
Rated voltage
-
IP68 (2m72h), IP69K, IPXXB
Waterproof grade
-
-40~125°C
Operating temperature
-
V2 vibration in USCAR-2
Mechanical shock
Technical Parameters
| Connector model | SH1 | ||
| Number of shell cores | 2-core, 3-core and 4-core | ||
| Specification of adaptable cable | 2.5/4/6mm² | ||
| Mechanical life | 50 times (Number of times of disassembly and assembly) | ||
| Mechanical vibration shock | USCAR V2 grade | ||
| Rated current | 20A (2.5mm²), 32A (4mm²), 40A (6mm²), 20A (2.5mm²), 32A (4mm²), 40A (6mm²) | ||
| Rated voltage | 1000V | ||
| Withstand voltage | 3000V | ||
| Insulation resistance | 5000MΩ | ||
| Temperature rise | ＜55K | ||
| Protection grade | IP68, IP69K | ||
| Range of working temperature | -40°C～+125°C | ||
| Flame retardant grade | Plastic material UL94 V0 (grade HB for seals) | ||
| Salt spray grade | 96H | ||
| Adapter bolt of the installation panel | M4 | ||
| Shell | Nylon | ||
| Insulator | Nylon | ||
| Seals | Silicone rubber | ||
| Shield layer | Copper alloy | ||
| Contacts | Silver plating of copper alloy | ||
Unfold
Features
Customer Cases
-
Installation photo of Quanxing steering motor
Installation photo of Quanxing steering motor to achieve the electrical connection between steering motor and all-in-one controller.
-
Installation photo of EWEA eight-in-one controller
Installation photo of EWEA eight-in-one controller: The two circuits of auxiliary drive are air compressor and steering motor respectively, and the au
-
Installation photo of Inovance seven-in-one controller
Installation photo of Inovance seven-in-one controller. The two circuits of auxiliary drive are air compressor and steering motor respectively which a
