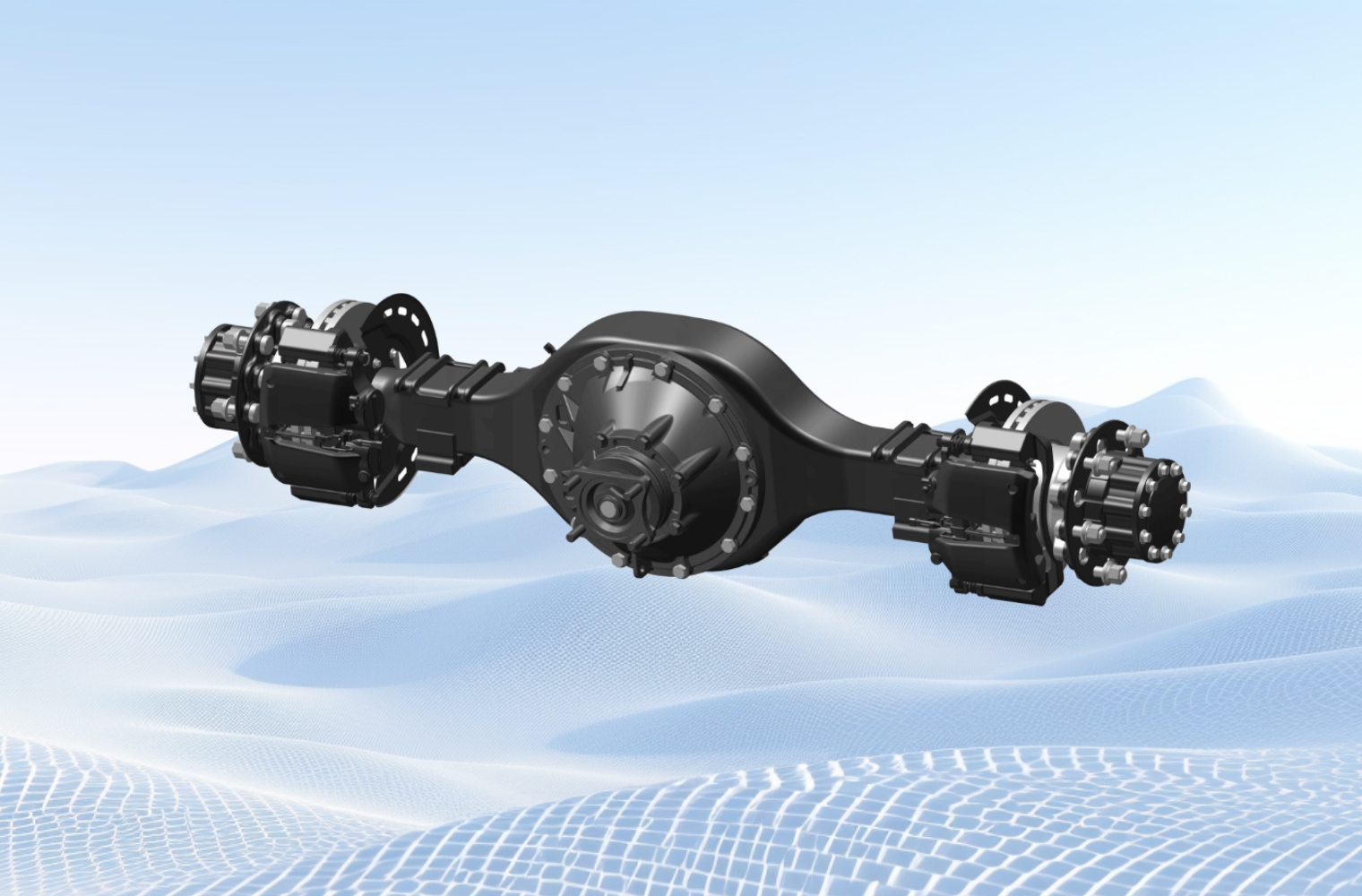

Rear Axle

The product is suitable for road vehicles/buses with a length of above 10m.

  • 13000

    Load (kg)

  • 1832 (adjustable)

    Rim mounting distance (mm)

  • 43000

    Maximum output torque (N·m)

  • 3.17/3.39/3.73/3.90/4.10/4.88/5.22/5.63/6.14

    Speed ratio

Technical Parameters

Load (kg) 13000
Rim mounting distance (mm) 1832
Speed ratio 3.17/3.39/3.73/3.90/4.10/4.88/5.22/5.63/6.14
Maximum output torque (N·m) 43000
Brake specification (") Pneumatic disc type 22.5
Wheel bolt distribution circle (mm) Ф335
Type of hub bearing Maintenance-free
Weight (kg) 660
Oil-lubricated wheel hub is optional, and pneumatic drum brake is optional.
Unfold

Features

Wide platform coverage

It covers a load of 2.5t-16t, 35t and 40t, which can meet the needs of buses/road vehicles with a length of above 5m, mining trucks and heavy trucks.

Lightweight product

Punched and welded axle housing structure, friction welding process, high reliability and light weight.

Low-noise final reduction drive

DIN4 high-precision self-made gears are used, and the final reduction drive assembly is finely grounded with low system noise.

Long maintenance cycle

The wheel rim of bearing unit is used to realize long service life, and the long-mileage lubricating oil extends the maintenance cycle.
