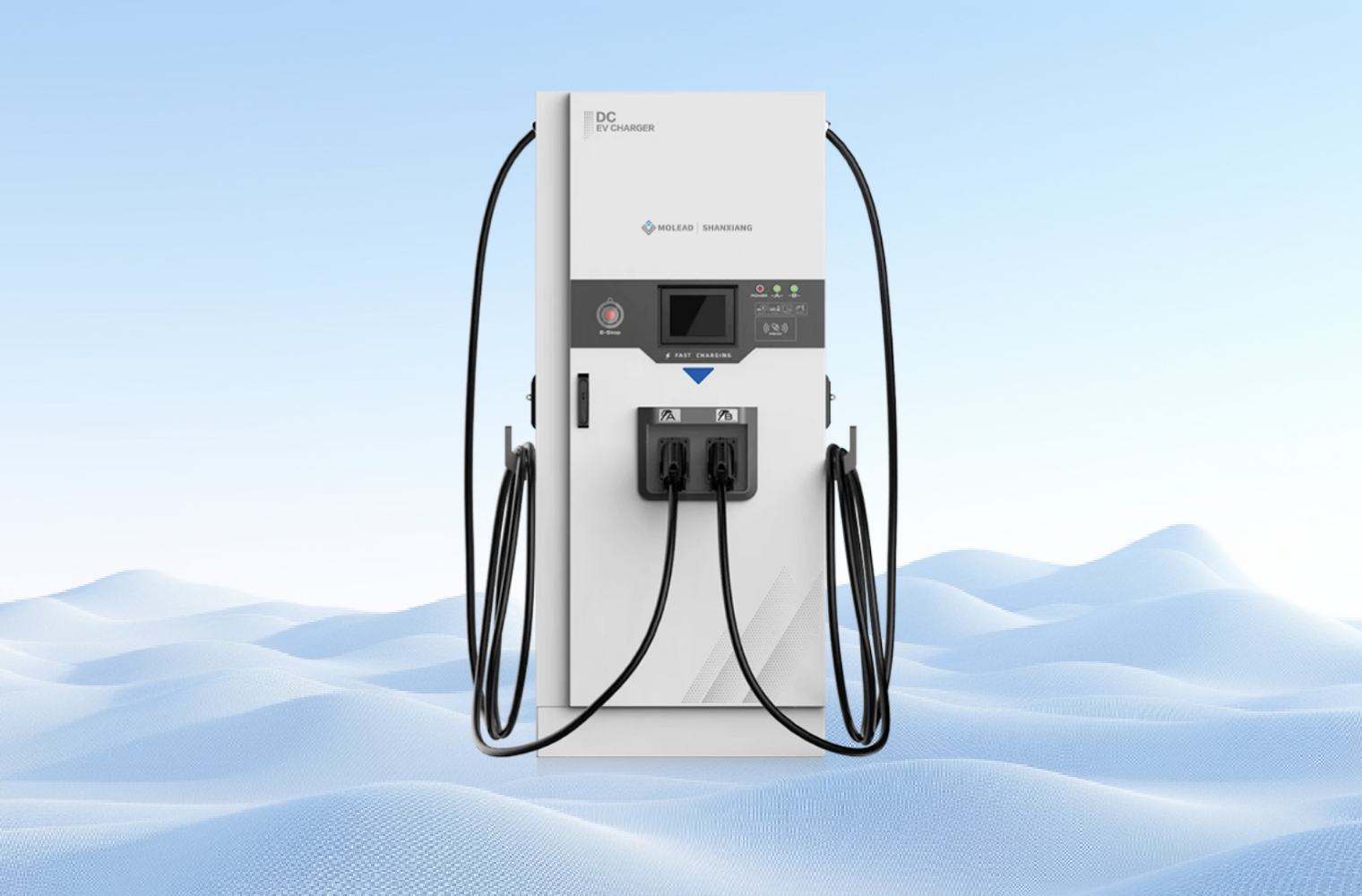

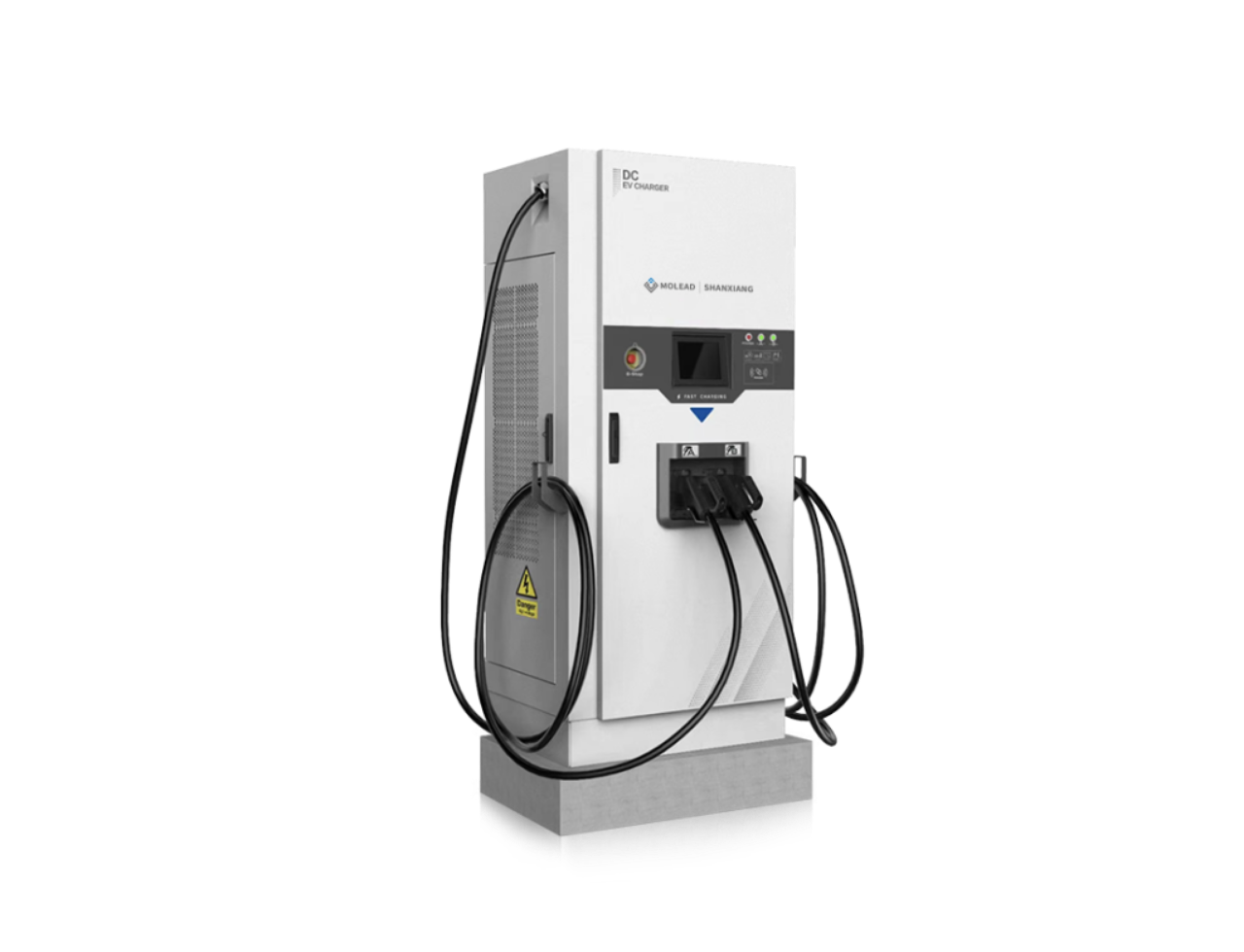

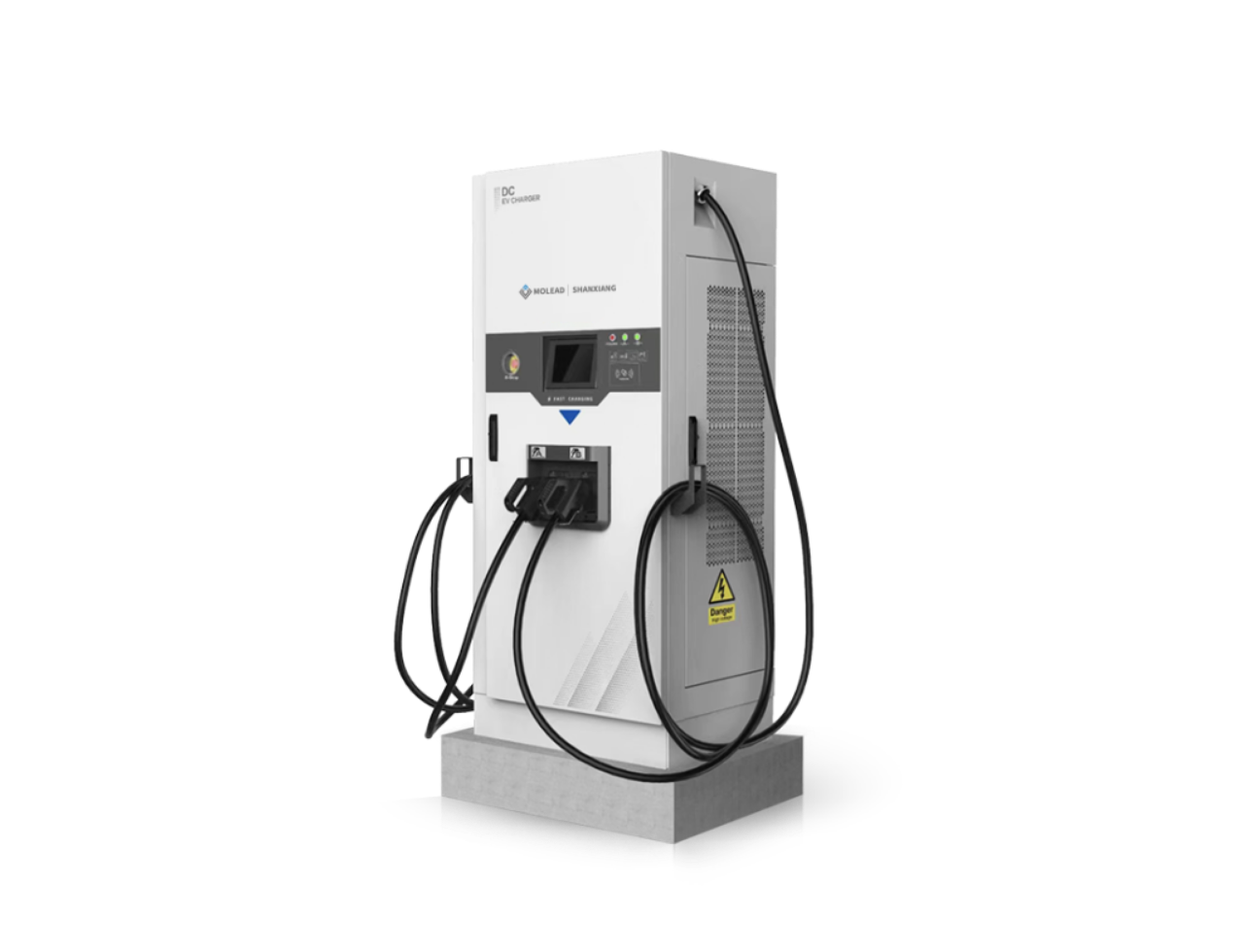

Integrated DC Charger of European Standard

It is mainly used for fast charging of electric vehicles in areas that meet the European charging standard.

400V+15%

Input voltage (V)
50-60 Hz + 10%

AC grid frequency (Hz)
120 kW, 150 kW, 160 kW and 180 kW

Maximum output power (kW)
150-1000 V

Output voltage (V)

Get a quote WhatsApp

Technical Parameters

Mechanical characteristics		SZ-120-CE	SZ-150-CE	SZ-160-CE	SZ-180-CE
	Number of charging guns	Double guns	Double guns	Double guns	Double guns
	Dimensions	8506551950mm	8506551950mm	8506551950mm	8506551950mm
	Touch screen	8 inches	8 inches	8 inches	8 inches
	Standard configuration of gun cable	5m*2	5m*2	5m*2	5m*2
Basic performance	Input voltage	400V±15％	400V±15％	400V±15％	400V±15％
	AC grid frequency	50Hz/60Hz±10%	50Hz/60Hz±10%	50Hz/60Hz±10%	50Hz/60Hz±10%
	Access method	3-phase 5-wire system	3-phase 5-wire system	3-phase 5-wire system	3-phase 5-wire system
	Maximum output power	120kW	150kW	160kW	180kW
	Output voltage	150 ～ 1000V	150 ～ 1000V	150 ～ 1000V	150 ～ 1000V
	Output current of single gun	Max. 250A	Max. 250A	Max. 250A	Max. 250A
	Power factor (P≥50%)	≥0.99	≥0.99	≥0.99	≥0.99
	Maximum efficiency	≥96%	≥96%	≥96%	≥96%
IEC EN 61851-1:2017,IEC EN 61851-23:2014,IEC EN 61851-24:2014,IEC EN 62196-1:2014,IEC EN 62196-3,DIN SPEC 70121:2014,DIN SPEC 70122:2018,IEC EN 61851-21-2:2018 IEC EN 61851-1:2017, IEC EN 61851-23:2014, IEC EN 61851-24:2014, IEC EN 62196-1:2014, IEC EN 62196-3, DIN SPEC 70121:2014, DIN SPEC 70122:2018, IEC EN 61851-21-2:2018
Operating environment	Communication interface	2G/3G/4G/LAN	2G/3G/4G/LAN	2G/3G/4G/LAN	2G/3G/4G/LAN
	Platform protocol	OCPP,MQTT	OCPP,MQTT	OCPP,MQTT	OCPP,MQTT
	Protection grade	IP55	IP55	IP55	IP55
	Working temperature	-30℃～+55℃	-30℃～+55℃	-30℃～+55℃	-30℃～+55℃
	Relative humidity	5 ～ 95%	5 ～ 95%	5 ～ 95%	5 ～ 95%
	Altitude	≤2500m	≤2500m	≤2500m	≤2500m
	Noise	≤65dB	≤65dB	≤65dB	≤65dB
	Applicable	Bus/sanitation/light truck/operation station	Bus/sanitation/light truck/operation station	Medium-sized and above bus/sanitation/light truck/tractor/operation station	Medium-sized and above bus/sanitation/light truck/tractor/operation station

Unfold

Features

Enhanced safety

With over 50 software and hardware protection features, ensuring the safety of personnel, vehicles, and equipment, and establishing a comprehensive and active safety protection system.

High reliability

Charging module， featuring fully encapsulated and isolated technology, and ensuring high reliability.

Fast charging

With an output voltage range of 150-1000V, supporting full-power charging for both passenger and commercial vehicles, delivering faster charge times.

High protection grade

Overall protection grade of IP55.

Language and charging flexibility

With multiple languages of charger, providing Chinese, English, Spanish, and French, allowing for customizable language settings, and offering various charging modes, such as charging via card swiping, plug-and-charge, and scheduled charging.
