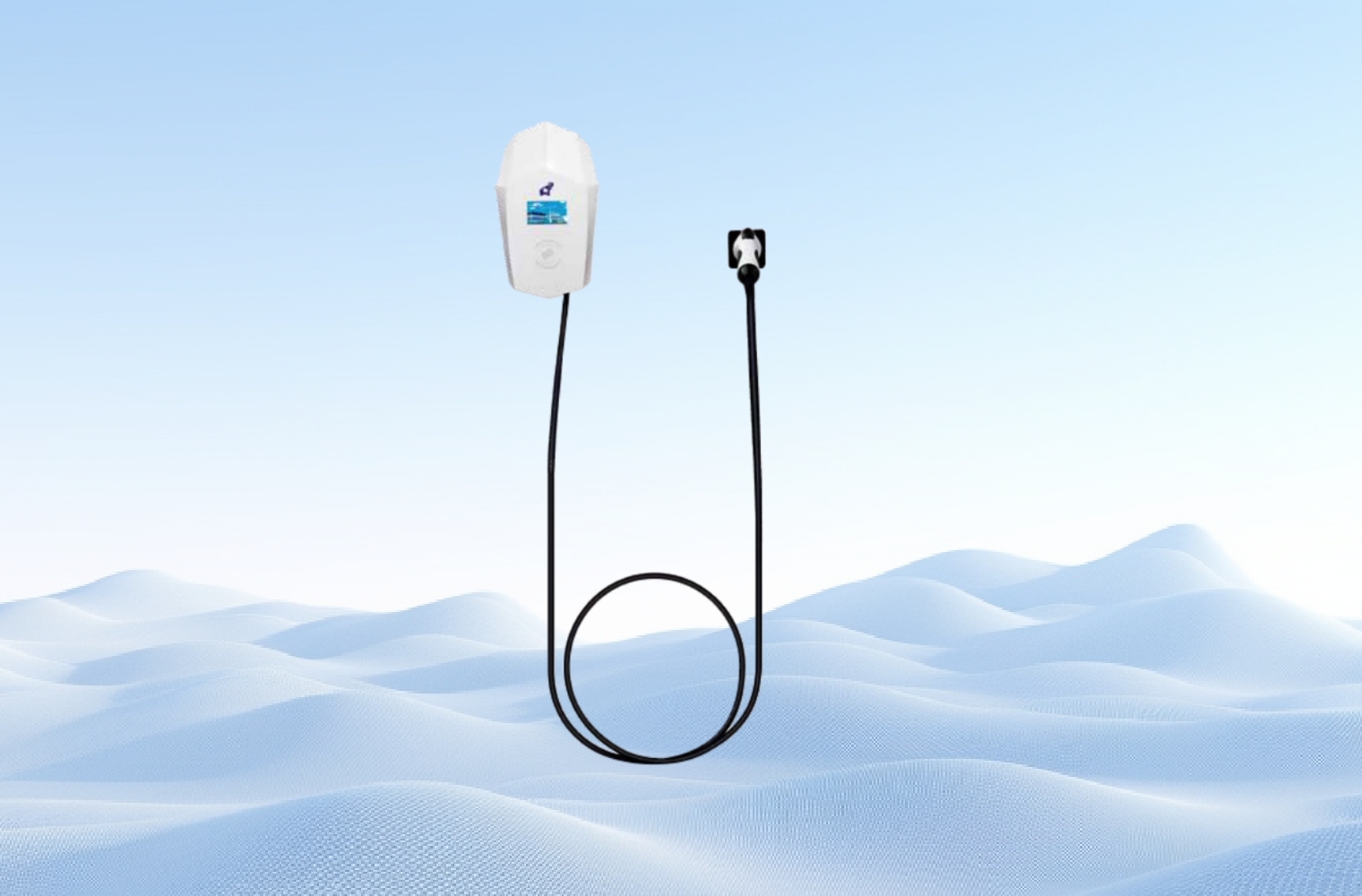

7kW AC Charger

The product is applicable to battery electric/hybrid models.

  • 220

    Rated voltage (V)

  • 32

    Maximum output current (A)

  • 50/60

    Operating frequency (Hz)

  • 7

    Maximum output power (kW)

Technical Parameters

Basic version Bluetooth version Operation version
Rated voltage 220VAC 220VAC 220VAC
Maximum output current 32A 32A 32A
Operating frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Maximum output power 7kW 7kW 7kW
Charging control mode START/STOP engine Bluetooth control of mobile phone applet Swipe card/scan QR code
Human-machine interaction / / 4.3'' Screen
Protection grade IP55 IP55 IP55
Operating temperature/humidity -30℃ ~ +55℃/5% ~ 95% -30℃ ~ +55℃/5% ~ 95% -30℃ ~ +55℃/5% ~ 95%
Installation method Column/wall-mounted Column/wall-mounted Column/wall-mounted
Unfold

Features

Two installation methods

Fully compliant with relevant standards, offering a choice between wall-mounted and floor-standing installation based on specific needs.

Easy operation

With its elegant design, simple installation, and intuitive operation, the compact AC charger allows users to easily handle tasks like charging and payment on their own.

Wide range of application

Suitable for different locations that require AC charging.

Convenient usage and maintenance

Ease use and maintenance with optional 4.3-inch serial LCD screen, supporting communication methods like 4G/LAN/Bluetooth, software/hardware emergency stop, and remote firmware upgrades.

Multiple protection features

Lightning protection, under-voltage protection, leakage protection, over-current protection, and grounding protection.
