YTG09 High-end Bus Seat

The product is suitable for U series high-end bus models and meets the market demand of overseas high-end buses.

  • 990mm

    Seat width (min)

  • 592(-8,8)mm

    Seat depth

  • 25mm

    Backrest thickness (min)

  • 441(-2, 2) mm

    Seat cushion width

Technical Parameters

Product parameters
Backrest height 720(-5,5)mm
Backrest width 441(-5,5)mm
Seat cushion depth 481(-2,2)mm
Seat cushion width 441(-5,5)mm
Backrest thickness 25(-2,2)mm
Initial backrest angle 111°
Seat cushion height 376(-5,5)mm
Seat width (min) 990(-10,10)mm
Seat depth 592(-8,8)mm
Product function configurations
Grab handle Standard
Fixed handrail Optional
Movable handrail Optional
Side cover Standard
Backboard Standard
Wireless charging Optional
USB Optional
Unfold

Features

Enhanced safety

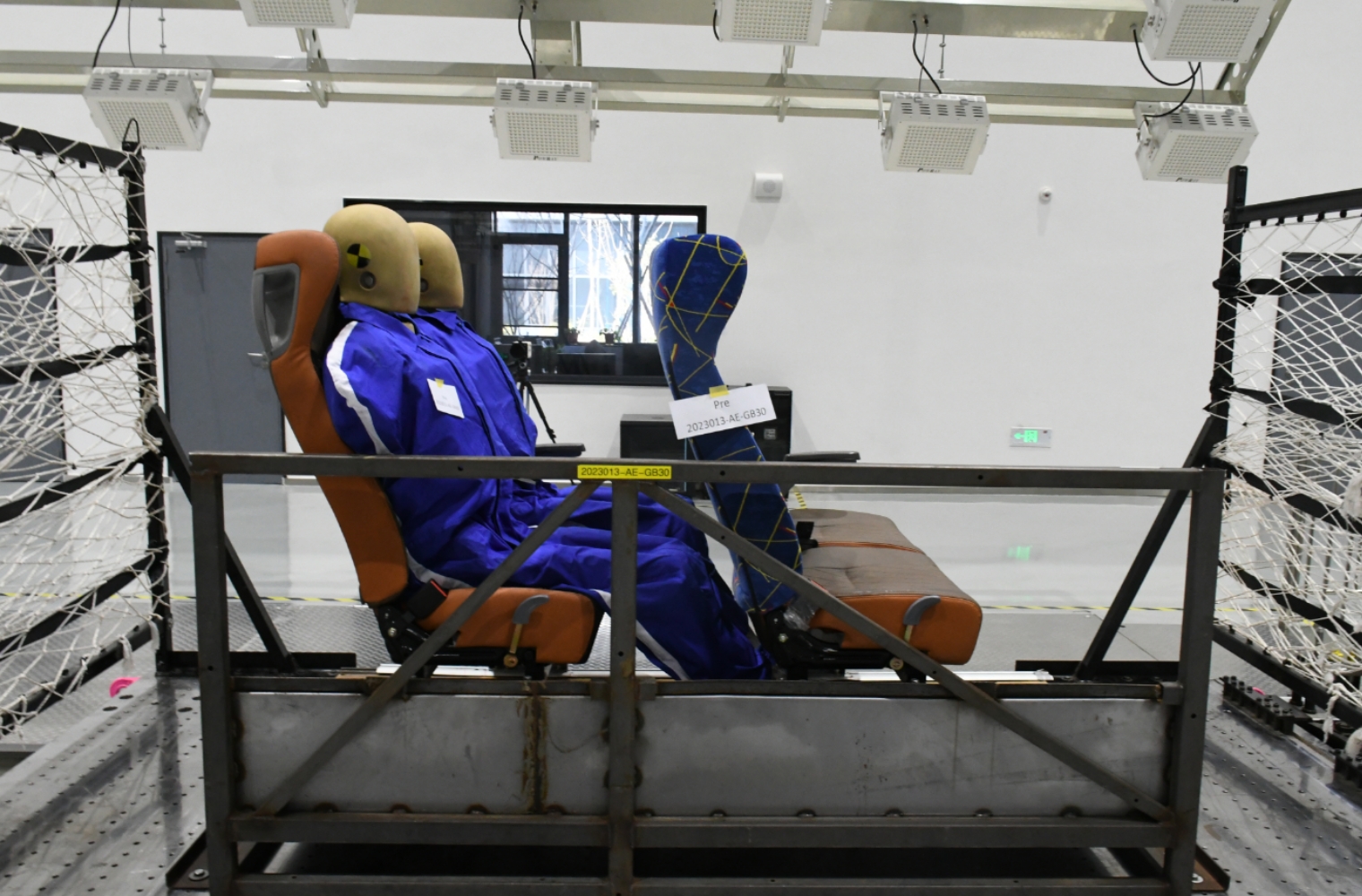

The product has obtained EU ECE certificate, meeting all domestic mandatory test requirements, has participated in the formulation of national passenger vehicle seat standards, and has been the designated test seat for national standard promotion conferences. It is also the first seat subject to dynamic collision test with dummies in China.

Enhanced comfort

The wider backrest, sponge seat, and the curve design verified based on ergonomics can provide passengers with better riding experience.

Exceptional environmental sustainability

The backrest features a steel frame structure, with entirely plywood-free materials, reducing the odor emission of formaldehyde and benzene series. The professional and strict selection of environmentally friendly materials and advanced system for seat environment chamber detection ensures fresher seat odor.

Good functionality

The high-grade plastic backboard is solid and durable, and easy to maintain.
