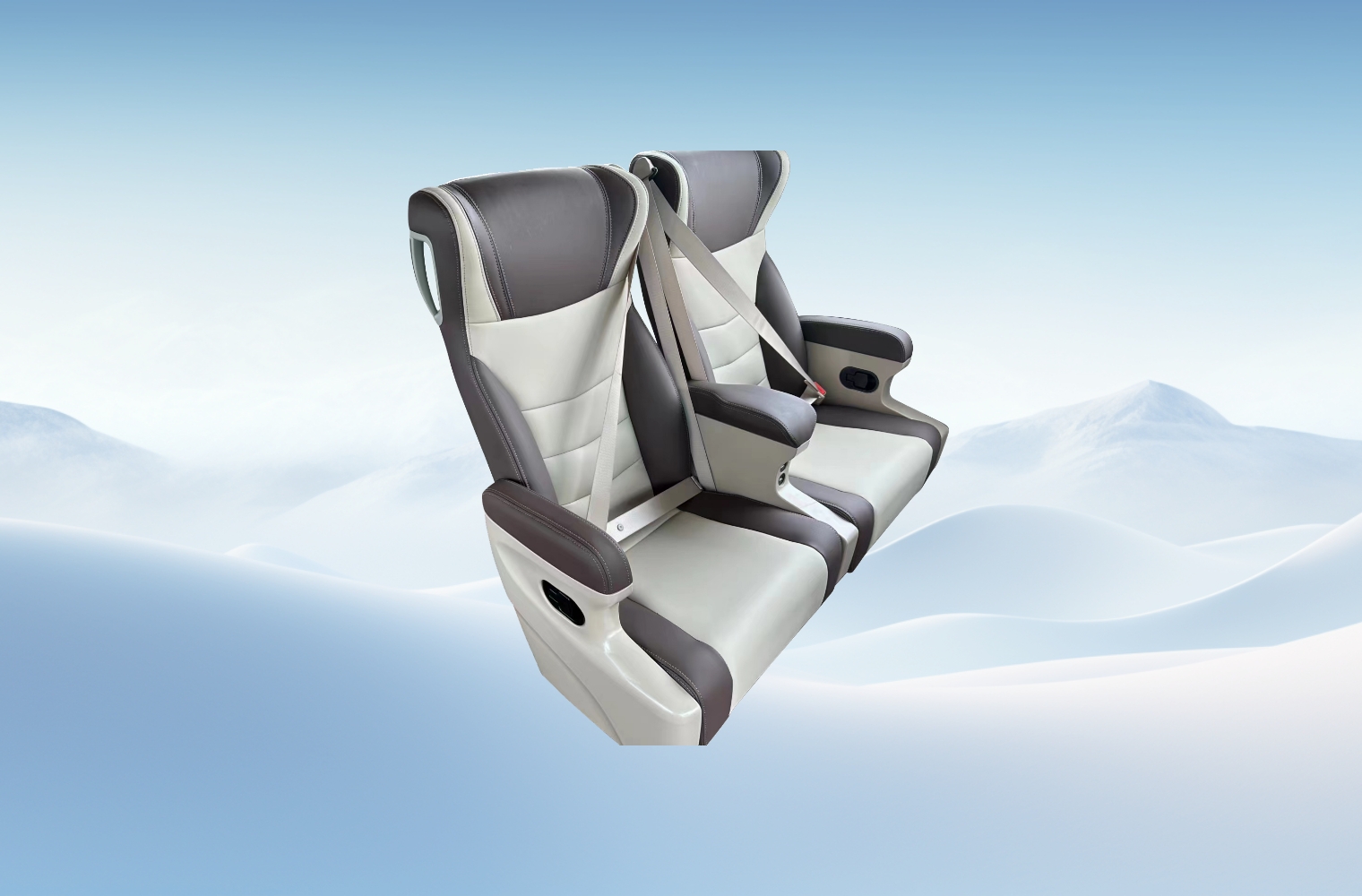

YT01(F04) Mid to High-end business-class Seat

The product is suitable for ZK6907/ZK6117/ZK6116 and other 7 series rear-mounted coaches, meeting the market demands of domestic passenger transport and tourist groups.

  • 1190 (-5,+5) mm

    Seat width (mm)

  • 750 (-5,10) mm

    Seat depth

  • 500 (-5,5) mm

    Seat cushion width

  • Adjustable angle: 16°

    Angle of backrest

Technical Parameters

Product parameters
Backrest height 775 (-5,5) mm
Backrest width 500 (-5,5) mm
Seat cushion depth 435 (-5,5) mm
Seat cushion width 500 (-5,5) mm
Backrest thickness 60 (-5,5) mm
Seat cushion height Arranged based on the vehicle
Seat width (mm) 1185 (-5,5) mm
Seat depth 760 (-5,10) mm
Product function configurations
Seat pocket Standard
Seatback handle and armrest Standard
USB charging Standard
Cup holder Optional
Pedal Optional
Leg support Optional
Unfold

Features

Safety

We obtained the 3C certification in China, participated in the formulation of national bus seat standards; the seat is designated as the test seat for national standard promotion meetings, and we are the first in China to conduct dynamic impact test of restraint dummy.

Comfort

Featuring rounded, flowing curves and an elegant, multi-dimensional design, this product caters to middle to high-end users. With USB charging support and optimized ergonomics, it ensures a supremely comfortable seating experience.

Environmental Friendliness

The backrest features a steel frame structure, completely excluding the use of plywood materials, thereby reducing the emission of formaldehyde and benzene compounds odors. The environmentally conscious material selection by professional ophthalmologists and the advanced seat environment chamber detection system ensure a fresher seat experience.

Reliability

Seats are durable, meeting Yutong's stringent performance standards for stiffness, strength, and endurance.

Versatile Features

The seat offers an initial backrest angle of 110°, adjustable by 16°, and a semi-reclining option to a maximum of 30°, providing ample seating space for passengers of diverse body types.
