SCZ Series DC Charging Socket

SCZ series European standard CCS2 charging socket, installed on electric vehicles.

DC1000V

Operation voltage
80A 125A 200A 250A 300A 400A 500A

Rated current
IP55

Protection voltage
TUV CE Approved

Certification

Get a quote WhatsApp

Technical Parameters

Items	Parameter
Operating temperature	-30℃～+40℃ (according to IEC62196-2022)
Degree of protection	IP44 (with accessories)
Salt spray grade	96H
Mechanical life	>10000 times
Rated voltage	DC+/DC-: 1000V DC; L1/L2/L3/N: 480V AC; PP/CP 30VDC
Rated current	DC+/DC-: 80A, 125A, 150A, 200A, 250A, 300A, 400A, 500A； L1/L2/L3/N：32A; PP/CP：2A
Voltage proof	DC+, DC-, PE: 3000V AC (normal temperature); DC+, DC-, PE and other contacts: 3000V AC (normal temperature); L1, L2, L3, N, PE and other contacts: 2000V AC (normal temperature); other contacts: 500V AC (normal temperature)
Insulation resistance	≥5000MΩ (normal temperature) under 1000V DC
Insertion force	＜100N
Withdrawal force	＜100N
Terminal temperature rise	＜50K

Unfold

Features

High-quality materials

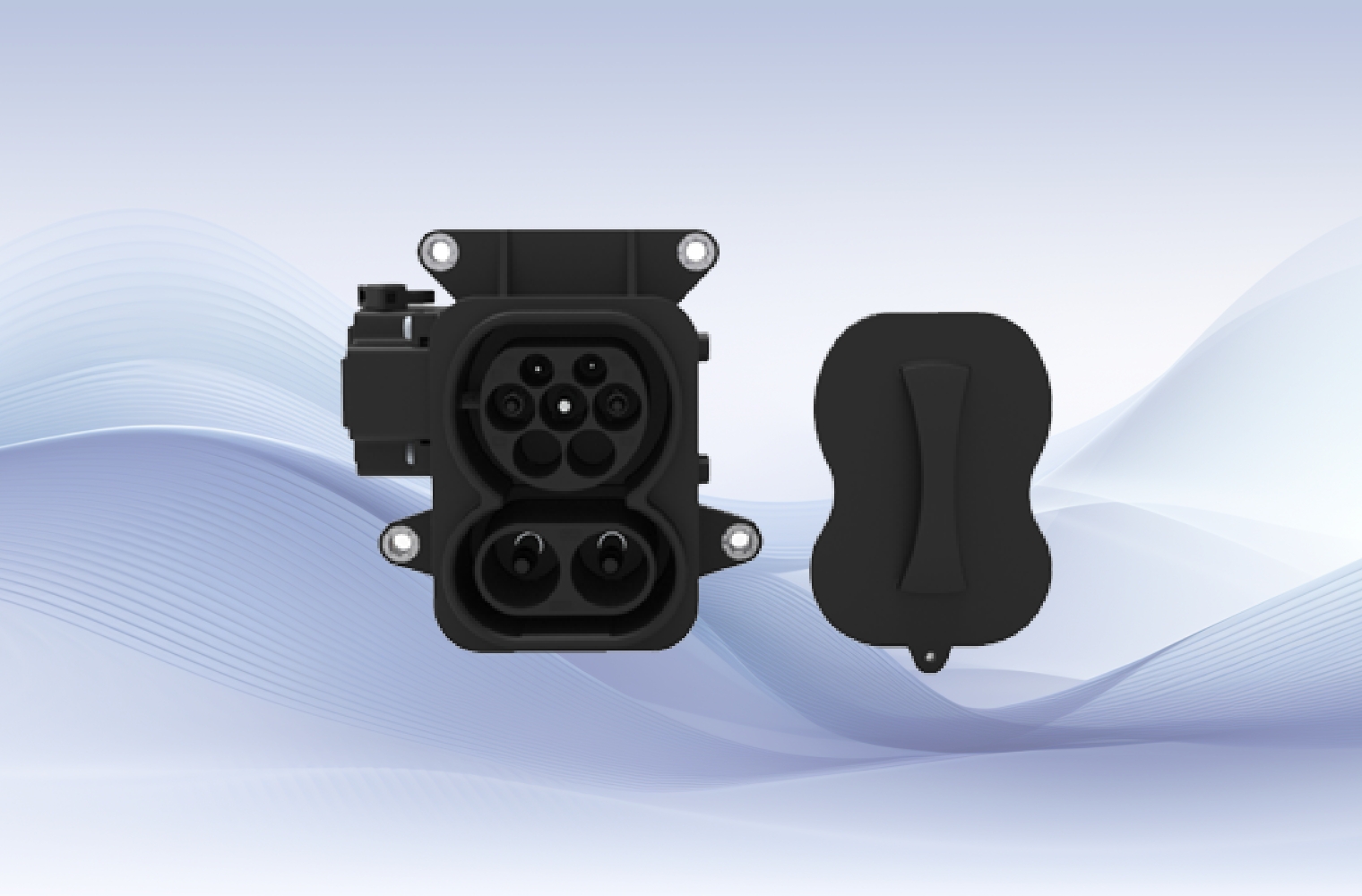

The dust cover is made of TPU, featuring both hardness and toughness.

Advanced manufacture processes

The power terminal is silver-plated, and the tail of terminal of 250A series product and the cable are welded with ultrasonic technology, featuring stable temperature rise.

Unique structural design

The unique drainage structure and integrated plastic structure are adopted to reduce the fit clearance for plug insertion and improve the reliability of plug locking.

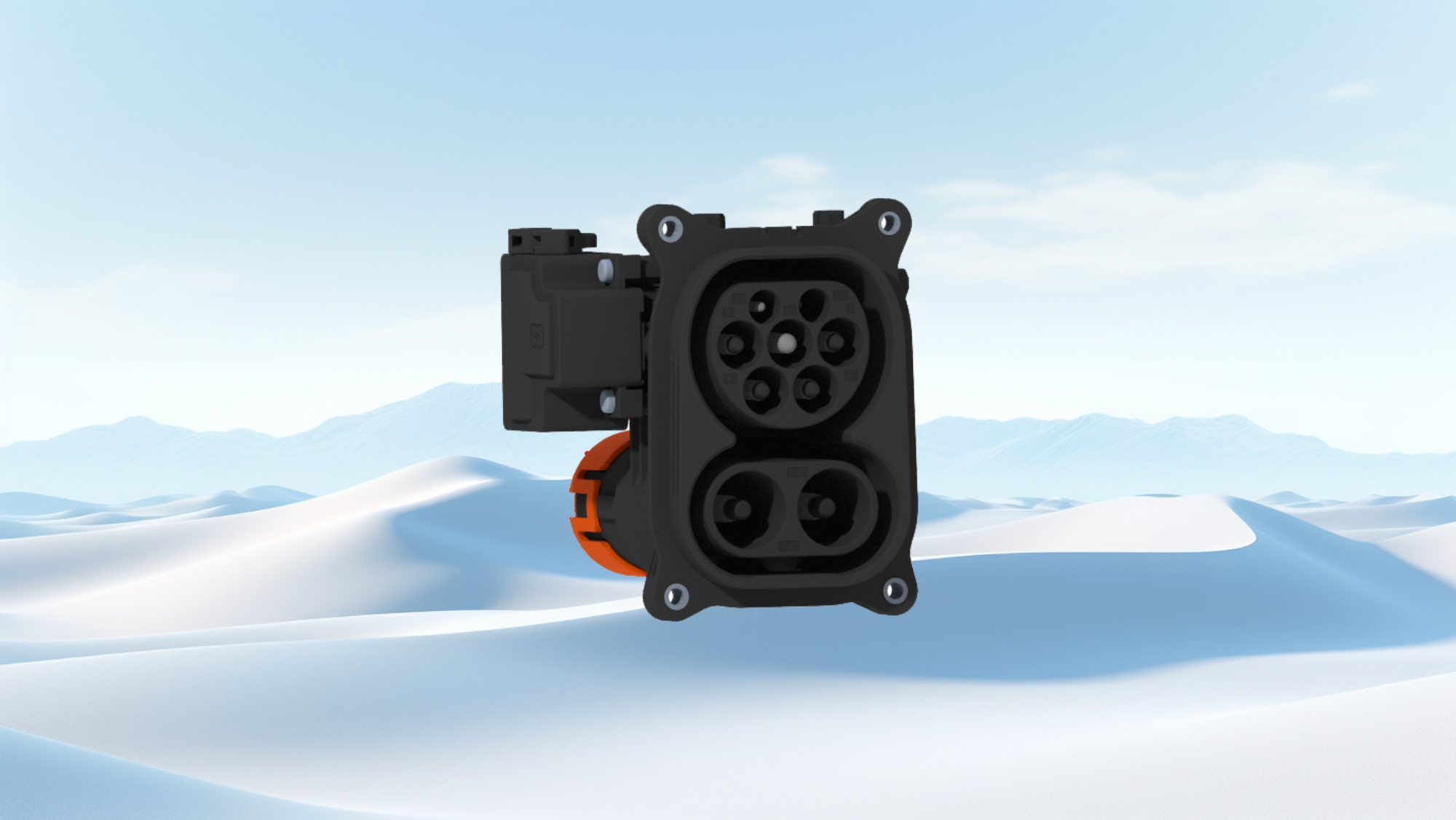

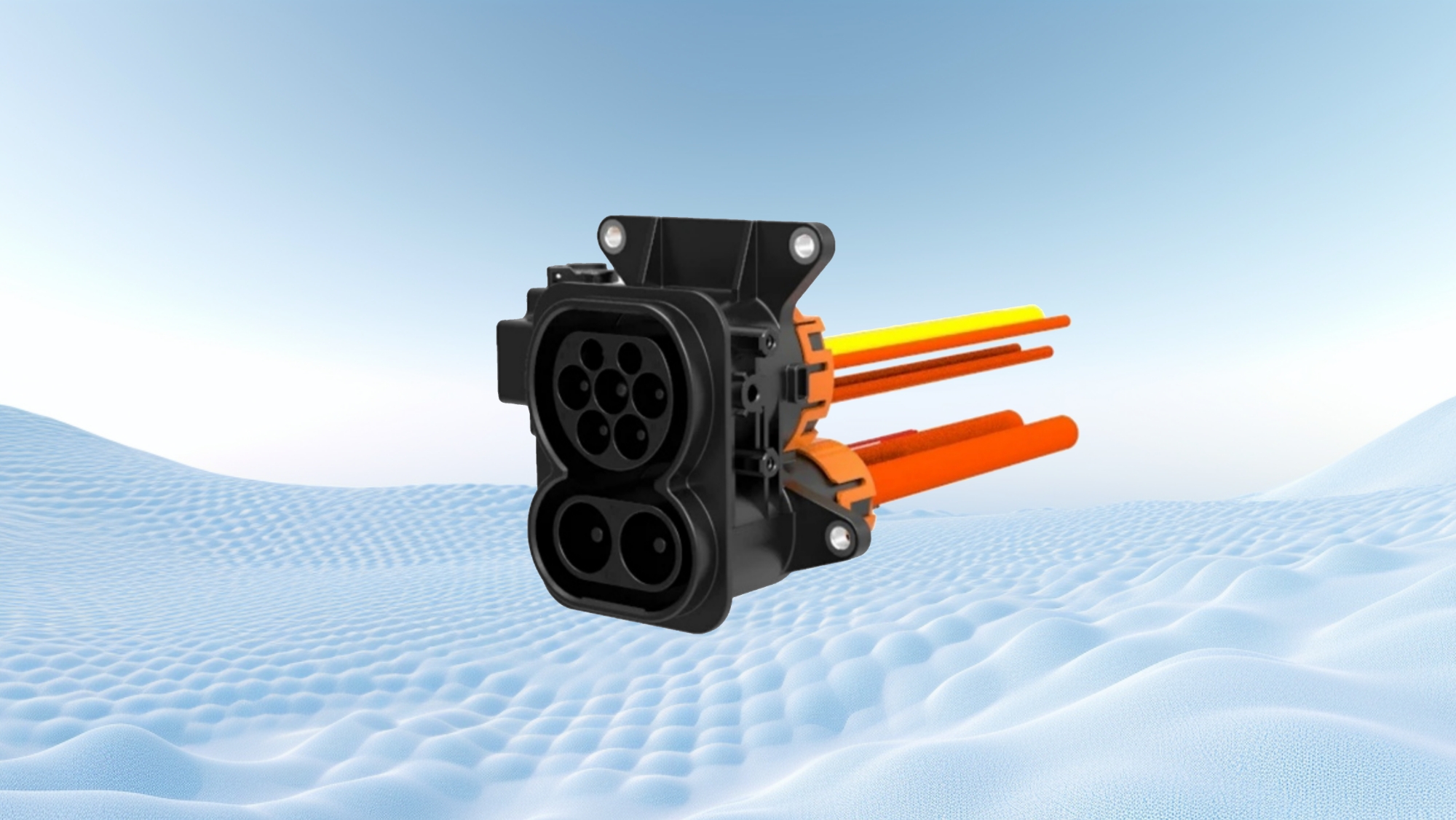

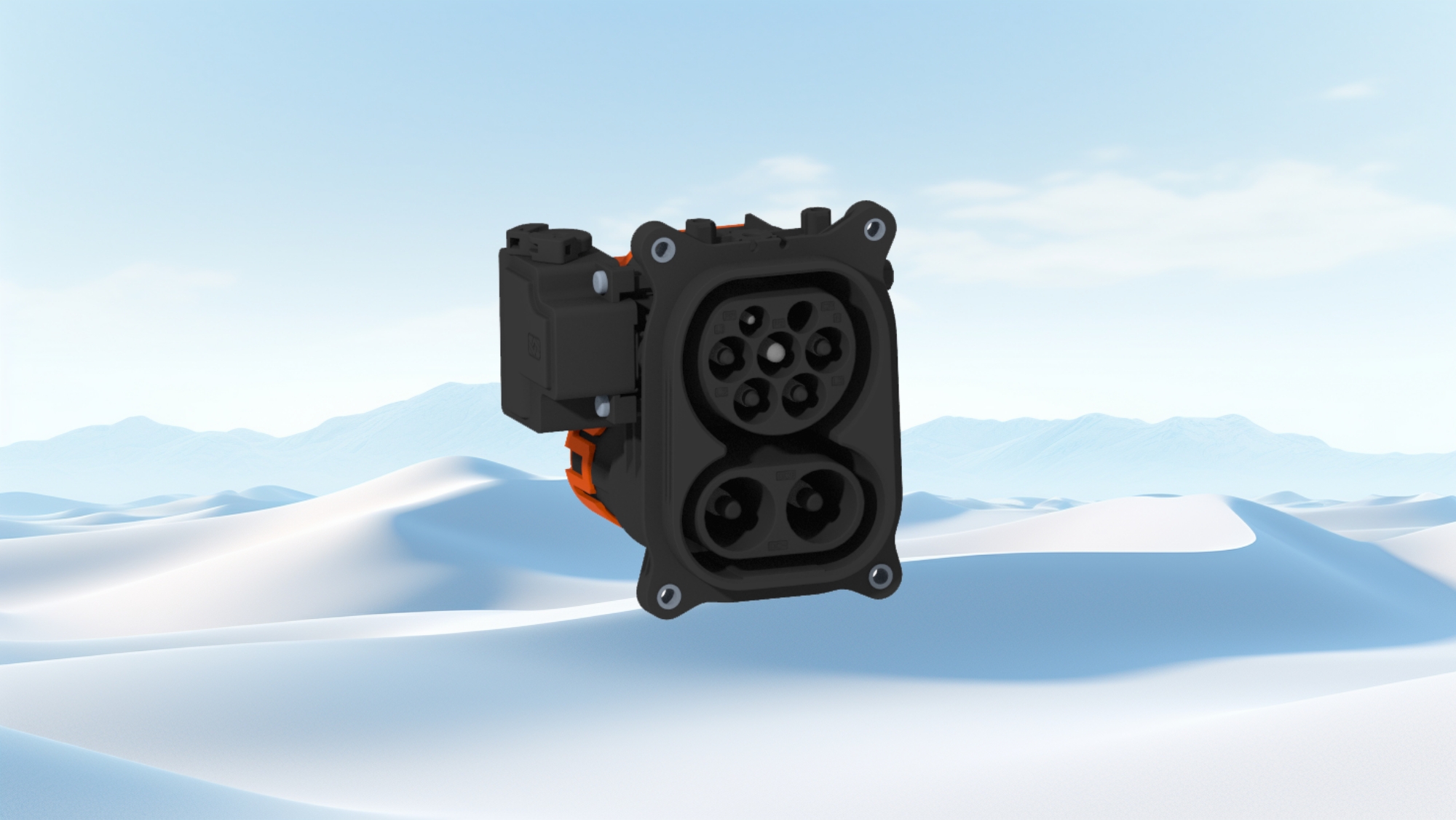

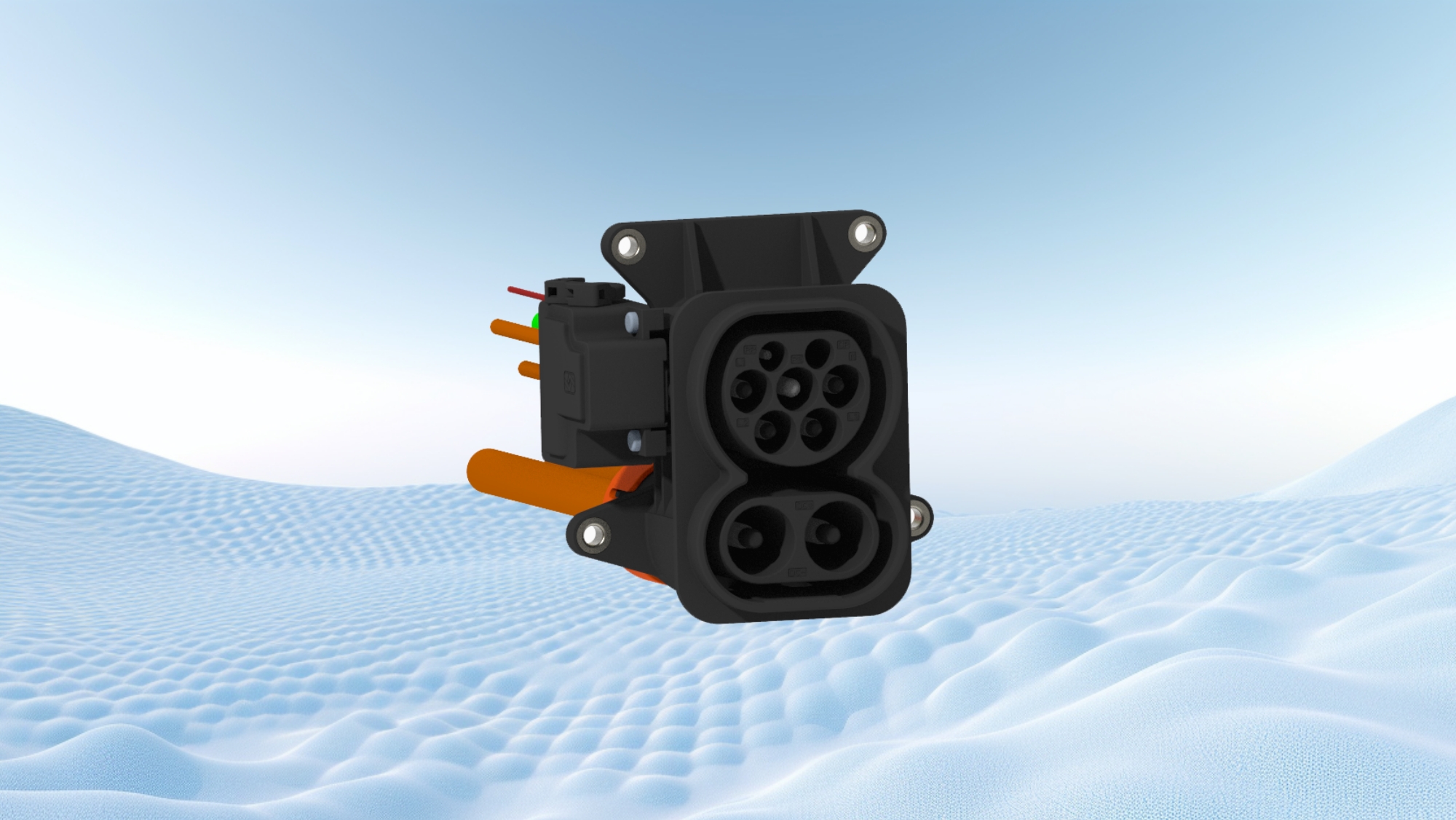

photos
