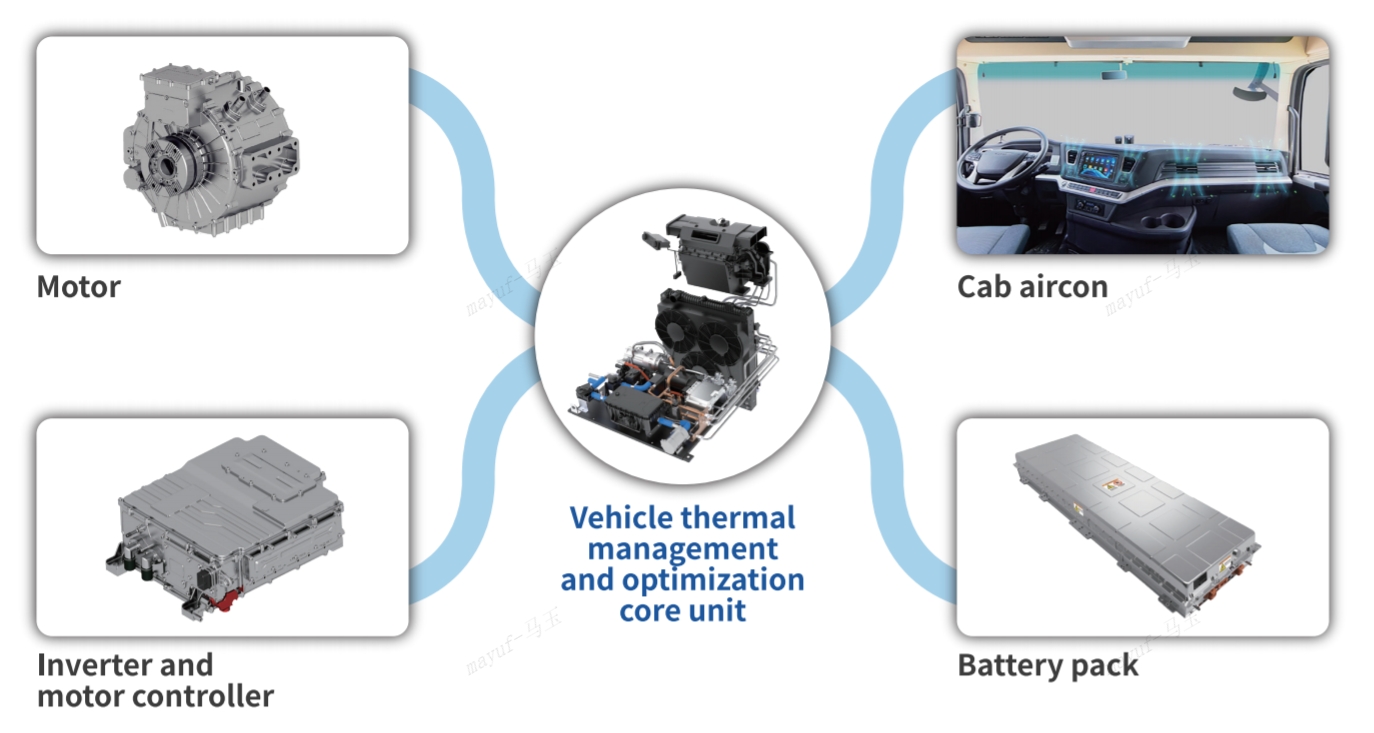

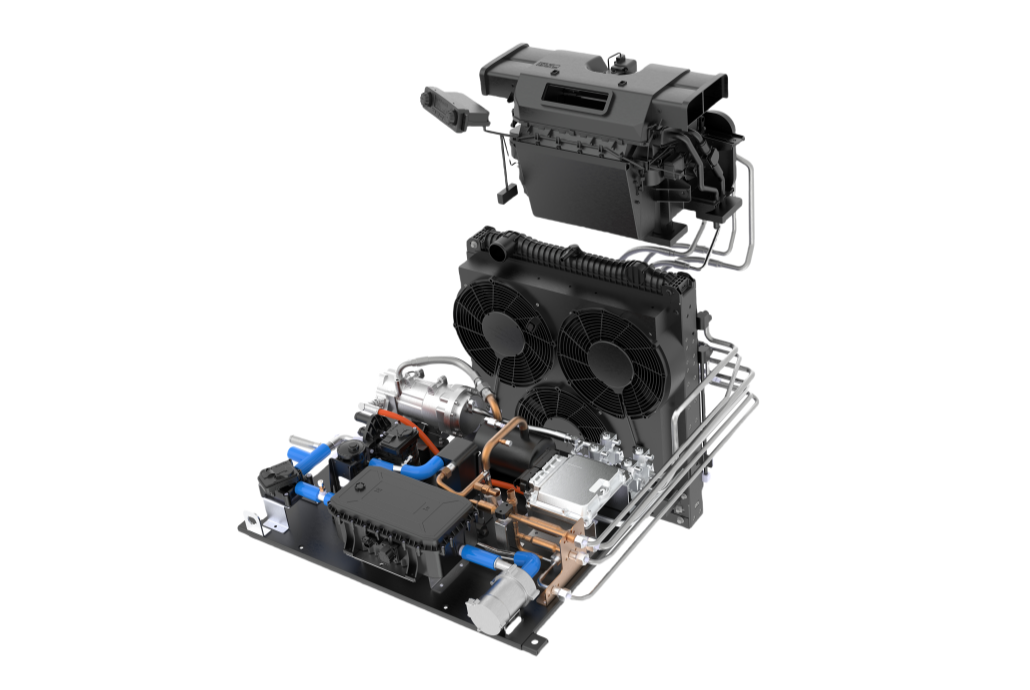

1. Introduction of Integrated Thermal Management Electrical System Includes:
The high and low voltage wiring harnesses connecting these components, etc.
2. The Integrated Thermal Management System Has Four Working Modes:

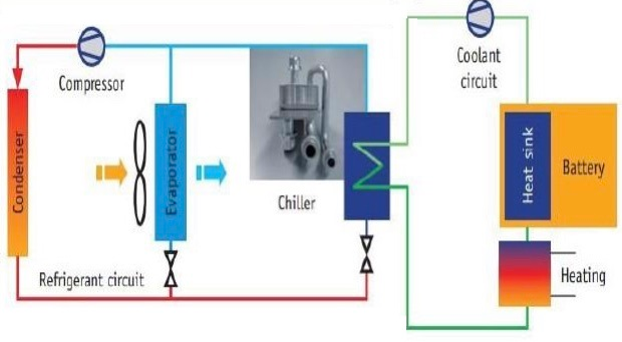

The battery adopts a secondary heat exchange liquid cooling mode.
3. Advantages of the Cling integrated thermal management system
Add a temperature and pressure sensor after the evaporator, couple the cooling logic on the air conditioning and the water temperature control scheme on the battery, and synchronously adjust the opening of the electronic expansion valve 1 and the electronic expansion valve 2, effectively solving the problem of uneven distribution of cooling capacity, and avoiding temperature fluctuations in the vehicle and the battery, which is in line with the comfort of the vehicle and the temperature of the battery. It has obvious advantages in terms of temperature control;
Through PID control technology, the speed of the compressor and condensing fan can be accurately adjusted to achieve energy saving;
Compared with the independent battery thermal management system, it can effectively reduce the weight and cost of the product while meeting the product requirements;
Adding multiple protections such as temperature, pressure, current, and voltage to the system can identify system operation risks in advance and effectively improve product operation reliability and safety;
The unit adopts the CAN communication network, and the unit operation data can be uploaded to the instrument in real time, and remote fault diagnosis and processing can be achieved through intelligent networking, which is convenient for detecting the unit operation status and after-sales troubleshooting.
As a professional electric bus air conditioner manufacturer in China, Molead CLING bus HVAC offers all kinds of bus air conditioner solutions for 6-25m bus, citybus, coach, school bus, shuttle bus, special vehicles and battery thermal management system, on vehicle refrigeration unit with shortest leadtime possible! 20 years professional experience and reputation guarantees the extraordinary performance!
